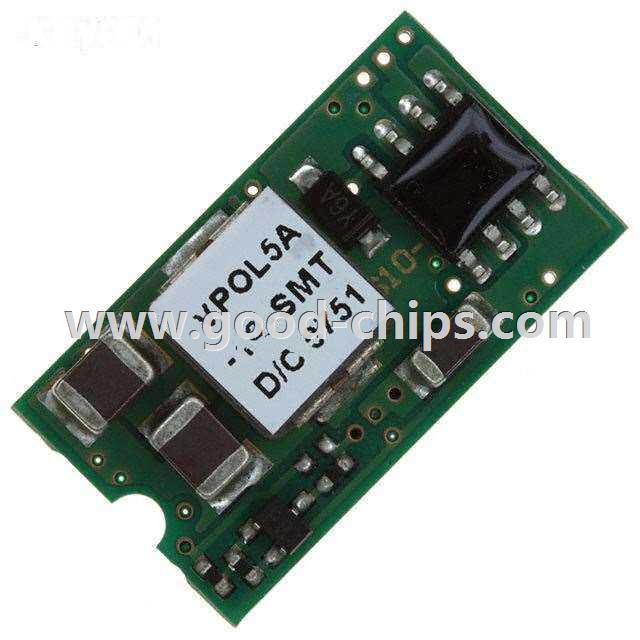

Manufacturer Part Number: | VPOL5A-12-SMT |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 5.0V OUT 5A SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VPOL5A-12-SMT Datasheet |
Internal Part Number | 898-VPOL5A-12-SMT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
RoHS Information | VPOL5A-12-SMT Cert of Compliance | |
3D Model | VPOL5A-12-SMT | |
Online Catalog | VPOL5A Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VPOL5A | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 8.3V | |
Voltage - Input (Max) | 14V | |
Voltage - Output 1 | 0.75 ~ 5 V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 5A | |
Power (Watts) - Manufacture Series | - | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OTP, SCP, UVLO | |
Mounting Type | Surface Mount | |
Package / Case | 5-SMD Module | |
Size / Dimension | 0.80" L x 0.45" W x 0.24" H (20.3mm x 11.4mm x 6.1mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 92% | |
Power (Watts) - Max | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VPOL5A-12-SMT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VPOL5A-12-SMT is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VPOL5A-12-SMT is new and unused, you can buy VPOL5A-12-SMT CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VPOL5A-12-SMT.
