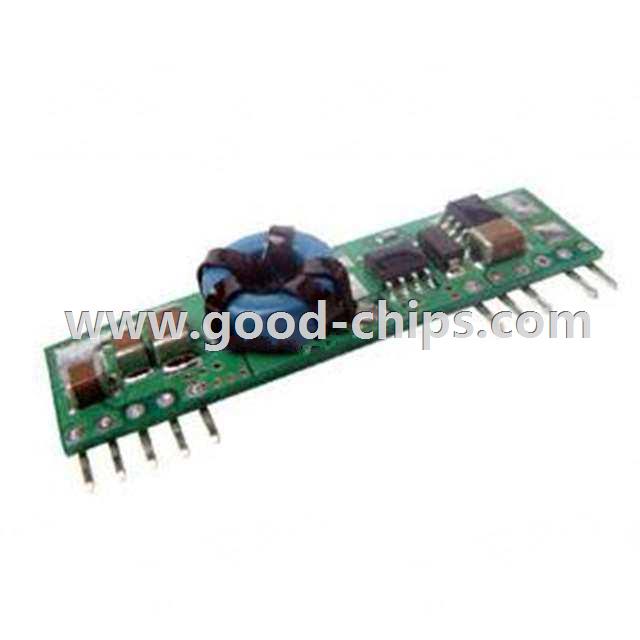

Manufacturer Part Number: | VPOL15A-5-SIP |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 3.63VOUT 15A SIP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VPOL15A-5-SIP Datasheet |
Internal Part Number | 898-VPOL15A-5-SIP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Thermal Management of Power Supplies | |
RoHS Information | VPOL15A-5-SIP Cert of Compliance | |
3D Model | VPOL15A-5-SIP | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VPOL15A | |
Packaging | - | |
Part Status | Active | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 3V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output 1 | 0.9 ~ 3.63 V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 15A | |
Power (Watts) - Manufacture Series | 54W | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OTP, SCP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 11-SIP Module (10 Leads) | |
Size / Dimension | 2.00" L x 0.34" W x 0.50" H (50.8mm x 8.6mm x 12.7mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 94% | |
Power (Watts) - Max | 54W | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VPOL15A-5-SIP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VPOL15A-5-SIP is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VPOL15A-5-SIP is new and unused, you can buy VPOL15A-5-SIP CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VPOL15A-5-SIP.
