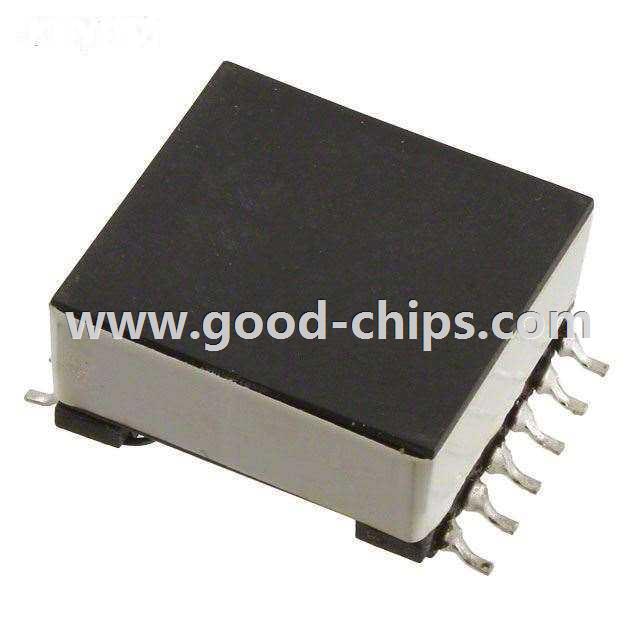

| Manufacturer Part Number: | VPH5-0067-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Arrays, Signal Transformers |
| Available Quantity: | 9568 Pieces |
| Unit Price: | Quote by Email |
| Description: | Unshielded 6 Coil Inductor Array Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VPH5-0067-R Datasheet |
| Internal Part Number | 898-VPH5-0067-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SEPIC Converter | |
| PCN Assembly/Origin | Multiple Devices 31/Aug/2013 Coiltronics Magnetics Facility 31/Aug/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | VERSA-PAC® Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Arrays, Signal Transformers | |
| Manufacturer | Eaton | |
| Series | VERSA-PAC® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Coils | 6 | |
| Inductance - Connected In Series | - | |
| Inductance - Connected In Parallel | - | |
| Tolerance | - | |
| Current Rating - Parallel | - | |
| Current Rating - Series | - | |
| Current Saturation - Parallel | - | |
| Current Saturation - Series | - | |
| DC Resistance (DCR) - Parallel | - | |
| DC Resistance (DCR) - Series | - | |
| Shielding | Unshielded | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.827" L x 1.122" W (21.00mm x 28.50mm) | |
| Height | 0.425" (10.80mm) | |
| Standard Package | 35 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VPH5-0067-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VPH5-0067-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of VPH5-0067-R is new and unused, you can buy VPH5-0067-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VPH5-0067-R.
