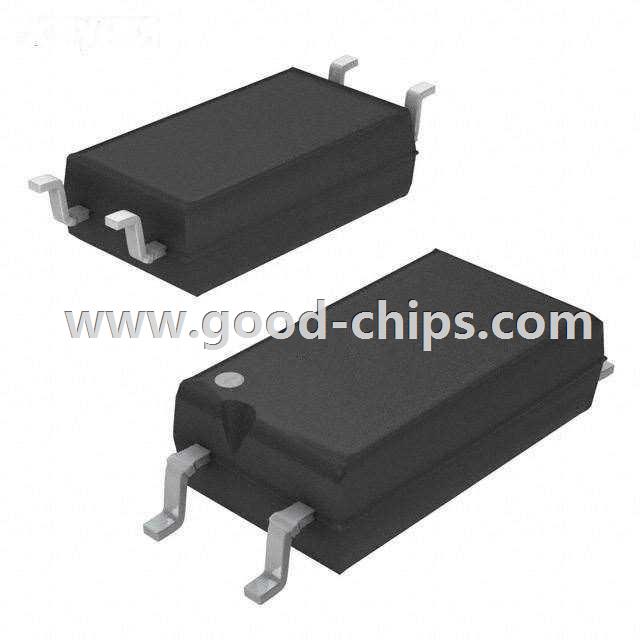

| Manufacturer Part Number: | VOL628A |
|---|---|
| Manufacturer: | Vishay Semiconductor Opto Division |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Transistor Output 5000Vrms 1 Channel 4-LSOP (2.54mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VOL628A Datasheet |
| Internal Part Number | 898-VOL628A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Vishay Semiconductor Opto Division | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5000Vrms | |
| Current Transfer Ratio (Min) | 50% @ 1mA | |
| Current Transfer Ratio (Max) | 600% @ 1mA | |
| Turn On / Turn Off Time (Typ) | 6µs, 5.5µs | |
| Rise / Fall Time (Typ) | 3.5µs, 5µs | |
| Input Type | AC, DC | |
| Output Type | Transistor | |
| Voltage - Output (Max) | 80V | |
| Current - Output / Channel | 50mA | |
| Voltage - Forward (Vf) (Typ) | 1.16V | |
| Current - DC Forward (If) (Max) | 60mA | |
| Vce Saturation (Max) | 400mV | |
| Operating Temperature | -55°C ~ 110°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, Gull Wing | |
| Supplier Device Package | 4-LSOP (2.54mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VOL628A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VOL628A is in stock for immediate shipping now. We are the distributor of Vishay Semiconductor Opto Division all series components. The condition of VOL628A is new and unused, you can buy VOL628A Vishay Semiconductor Opto Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VOL628A.
