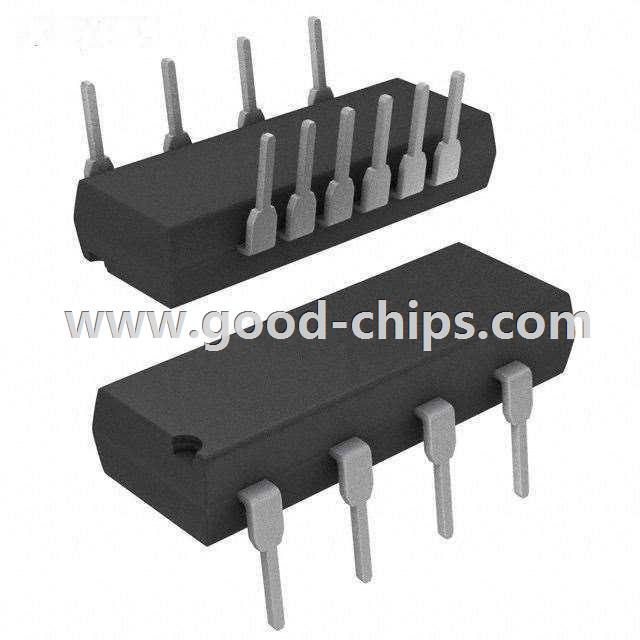

| Manufacturer Part Number: | VO3526 |
|---|---|
| Manufacturer: | Vishay Semiconductor Opto Division |
| Product Category: | Optoisolators - Triac, SCR Output |
| Available Quantity: | 9364 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Triac, Power Output 5300Vrms 1 Channel 10-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VO3526 Datasheet |
| Internal Part Number | 898-VO3526 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Power Phototriacs | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | VO3526 Series | |
| Category | Isolators | |
| Family | Optoisolators - Triac, SCR Output | |
| Manufacturer | Vishay Semiconductor Opto Division | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Output Type | Triac, Power | |
| Zero Crossing Circuit | No | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5300Vrms | |
| Voltage - Off State | 600V | |
| Static dV/dt (Min) | 210V/µs (Typ) | |
| Current - LED Trigger (Ift) (Max) | 10mA | |
| Current - On State (It (RMS)) (Max) | 1A | |
| Current - Hold (Ih) | 25mA | |
| Turn On Time | - | |
| Voltage - Forward (Vf) (Typ) | 1.4V (Max) | |
| Current - DC Forward (If) (Max) | 50mA | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP (0.300", 7.62mm), 10 Leads | |
| Supplier Device Package | 10-DIP | |
| Approvals | cUR, UR, VDE | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VO3526 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VO3526 is in stock for immediate shipping now. We are the distributor of Vishay Semiconductor Opto Division all series components. The condition of VO3526 is new and unused, you can buy VO3526 Vishay Semiconductor Opto Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VO3526.
