| Manufacturer Part Number: | VO2223-X001 |
|---|---|
| Manufacturer: | Vishay Semiconductor Opto Division |
| Product Category: | Optoisolators - Triac, SCR Output |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Triac, Power Output 5300Vrms 1 Channel 8-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VO2223-X001 Datasheet |
| Internal Part Number | 898-VO2223-X001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Isolators | |
| Family | Optoisolators - Triac, SCR Output | |
| Manufacturer | Vishay Semiconductor Opto Division | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Output Type | Triac, Power | |
| Zero Crossing Circuit | No | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5300Vrms | |
| Voltage - Off State | 600V | |
| Static dV/dt (Min) | 210V/µs (Typ) | |
| Current - LED Trigger (Ift) (Max) | 10mA | |
| Current - On State (It (RMS)) (Max) | 900mA | |
| Current - Hold (Ih) | 25mA | |
| Turn On Time | - | |
| Voltage - Forward (Vf) (Typ) | 1.3V (Max) | |
| Current - DC Forward (If) (Max) | 50mA | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Through Hole | |

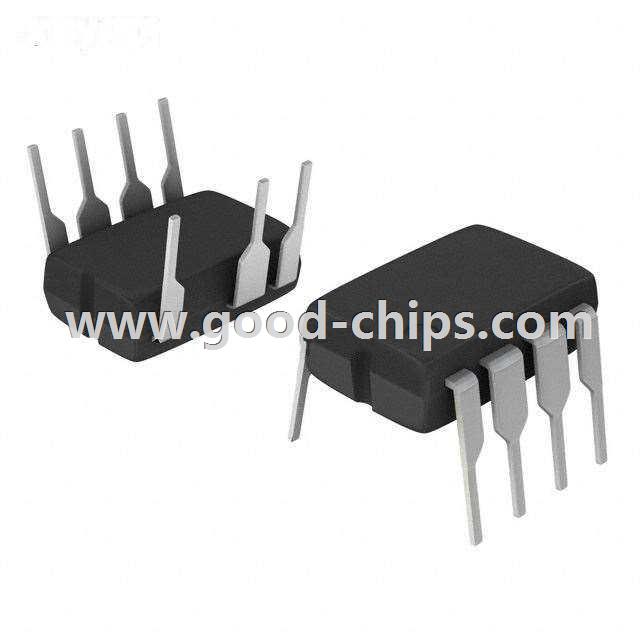

| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads | |
| Supplier Device Package | 8-DIP | |
| Approvals | cUR, UR, VDE | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VO2223-X001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VO2223-X001 is in stock for immediate shipping now. We are the distributor of Vishay Semiconductor Opto Division all series components. The condition of VO2223-X001 is new and unused, you can buy VO2223-X001 Vishay Semiconductor Opto Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VO2223-X001.
