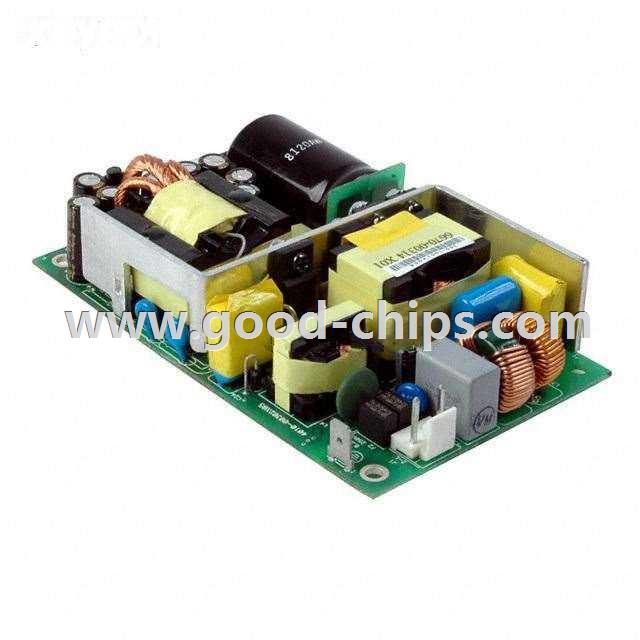

Manufacturer Part Number: | VMS-365-24 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | AC DC Converters |
Available Quantity: | 9051 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 24V 365W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VMS-365-24 Datasheet |
Internal Part Number | 898-VMS-365-24 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | High Density Medical Power Supplies-VMS Series Power Factor Correction in Ac-Dc Power Supplies EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
Video File | CUI Medical Power Video | |
RoHS Information | VMS-365 Series Cert of Compliance | |
Featured Product | VMS Series | |
3D Model | VMS-365-24 | |
Online Catalog | VMS-365 Series | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VMS-365 | |
Part Status | Active | |
Type | Open Frame | |
Number of Outputs | 1 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 24V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 15.2A | |
Power (Watts) | 365W | |
Applications | Medical | |
Voltage - Isolation | 5.656kV (5656V) | |
Efficiency | 90% | |
Operating Temperature | -20°C ~ 70°C (With Derating) | |
Features | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | |
Mounting Type | Chassis Mount | |
Size / Dimension | 5.00" L x 3.00" W x 1.17" H (127.0mm x 76.2mm x 29.6mm) | |
Minimum Load Required | No | |
Approvals | CCC, CE, cURus, VDE | |
Power (Watts) - Max | 365W | |
Standard Package | 28 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VMS-365-24 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VMS-365-24 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VMS-365-24 is new and unused, you can buy VMS-365-24 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VMS-365-24.
