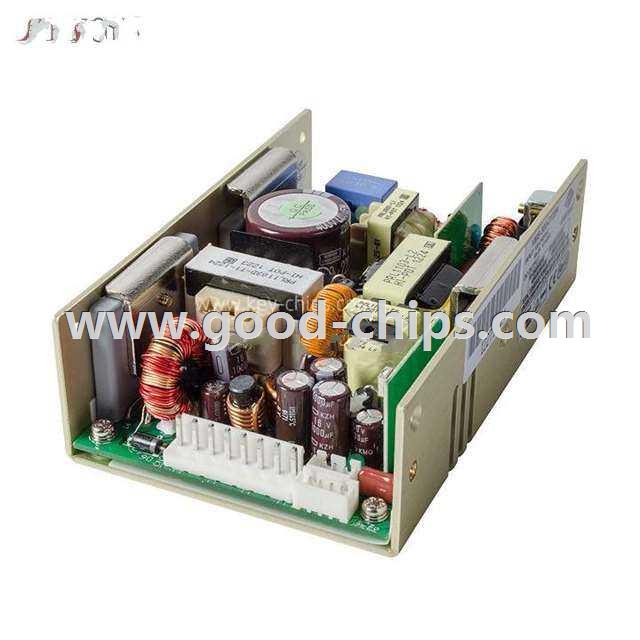

| Manufacturer Part Number: | VMS-300-D1224 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9045 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 12V 24V 120W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VMS-300-D1224 Datasheet |
| Internal Part Number | 898-VMS-300-D1224 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | VMS-300 Series Cert of Compliance | |
| Featured Product | VMS-300 Series AC-DC Medical Power Supplies | |
| Online Catalog | VMS-300 Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VMS-300 | |
| Part Status | Active | |
| Type | Open Frame | |
| Number of Outputs | 2 | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | 24V | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 13.33A, 6.67A | |
| Power (Watts) | 120W (240W Forced Air) | |
| Applications | Medical | |
| Voltage - Isolation | 4.0kV (4000V) | |
| Efficiency | 85% | |
| Operating Temperature | 0°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 5.00" L x 3.20" W x 1.50" H (127.0mm x 81.3mm x 38.1mm) | |
| Minimum Load Required | - | |
| Approvals | CE, cURus, GS | |
| Power (Watts) - Max | 120W (240W Forced Air) | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VMS-300-D1224 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VMS-300-D1224 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VMS-300-D1224 is new and unused, you can buy VMS-300-D1224 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VMS-300-D1224.
