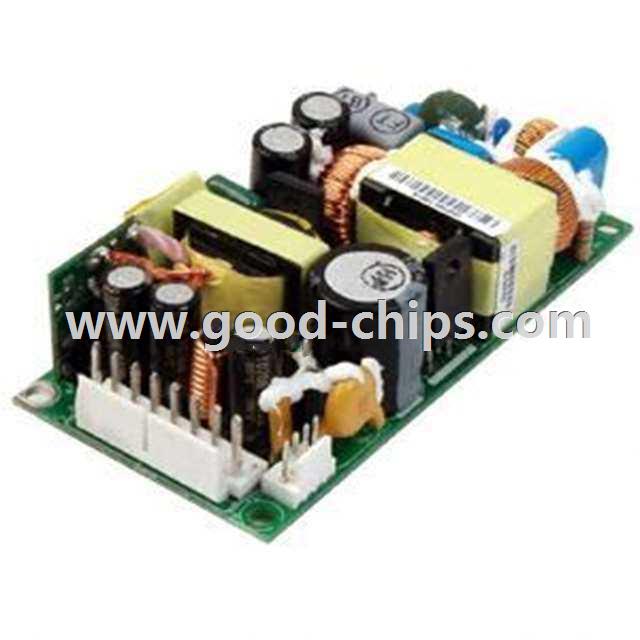

Manufacturer Part Number: | VMS-160-12 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | AC DC Converters |
Available Quantity: | 9279 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 12V 100W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VMS-160-12 Datasheet |
Internal Part Number | 898-VMS-160-12 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | High Density Medical Power Supplies-VMS Series Power Factor Correction in Ac-Dc Power Supplies EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
Video File | CUI Medical Power Video | |
RoHS Information | VMS-160 Series Cert of Compliance | |
Featured Product | VMS Series | |
3D Model | VMS-160-12 | |
Online Catalog | VMS-160 Series | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VMS-160 | |
Part Status | Active | |
Type | Open Frame | |
Number of Outputs | 1 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 13.3A | |
Power (Watts) | 100W (160W Forced Air) | |
Applications | Medical | |
Voltage - Isolation | 5.656kV (5656V) | |
Efficiency | 90% | |
Operating Temperature | -25°C ~ 70°C (With Derating) | |
Features | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | |
Mounting Type | Chassis Mount | |
Size / Dimension | 4.00" L x 2.00" W x 0.85" H (101.6mm x 50.8mm x 21.6mm) | |
Minimum Load Required | No | |
Approvals | CE, cURus | |
Power (Watts) - Max | 100W (160W Forced Air) | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VMS-160-12 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VMS-160-12 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VMS-160-12 is new and unused, you can buy VMS-160-12 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VMS-160-12.
