Manufacturer Part Number: | VMM650-01F |
---|---|
Manufacturer: | IXYS |
Product Category: | Transistors - FETs, MOSFETs - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET 2N-CH 100V 680A Y3-LI |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VMM650-01F Datasheet |
Internal Part Number | 898-VMM650-01F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Arrays | |
Manufacturer | IXYS | |
Series | HiPerFET™ | |
Packaging | Bulk | |
Part Status | Active | |
FET Type | 2 N-Channel (Dual) | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 100V | |
Current - Continuous Drain (Id) @ 25°C | 680A | |
Rds On (Max) @ Id, Vgs | 2.2 mOhm @ 500A, 10V | |
Vgs(th) (Max) @ Id | 4V @ 30mA | |
Gate Charge (Qg) @ Vgs | 1440nC @ 10V | |
Input Capacitance (Ciss) @ Vds | - | |
Power - Max | - | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Chassis Mount | |

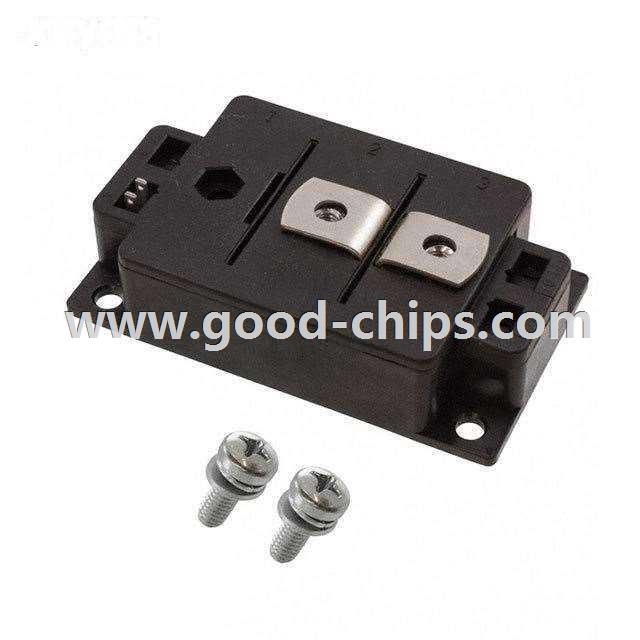

Package / Case | Y3-Li | |
Supplier Device Package | Y3-Li | |
Standard Package | 2 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VMM650-01F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VMM650-01F is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of VMM650-01F is new and unused, you can buy VMM650-01F IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VMM650-01F.
