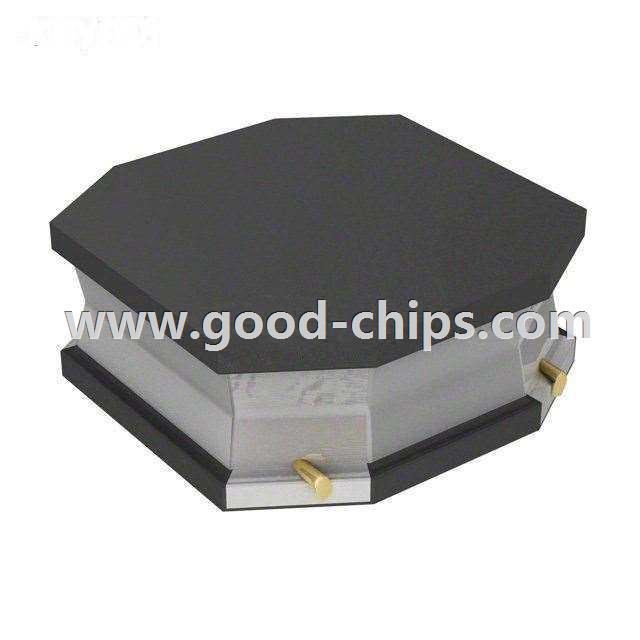

Manufacturer Part Number: | VLS3012ET-4R7M |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 4.7µH Shielded Wirewound Inductor 950mA 156 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VLS3012ET-4R7M Datasheet |
Internal Part Number | 898-VLS3012ET-4R7M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | VLS Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | TDK Corporation | |
Series | VLS | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 4.7µH | |
Tolerance | ±20% | |
Current Rating | 950mA | |
Current - Saturation | 950mA | |
Shielding | Shielded | |
DC Resistance (DCR) | 156 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 105°C | |
Frequency - Test | 1MHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | |
Height - Seated (Max) | 0.047" (1.20mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VLS3012ET-4R7M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VLS3012ET-4R7M is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of VLS3012ET-4R7M is new and unused, you can buy VLS3012ET-4R7M TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VLS3012ET-4R7M.
