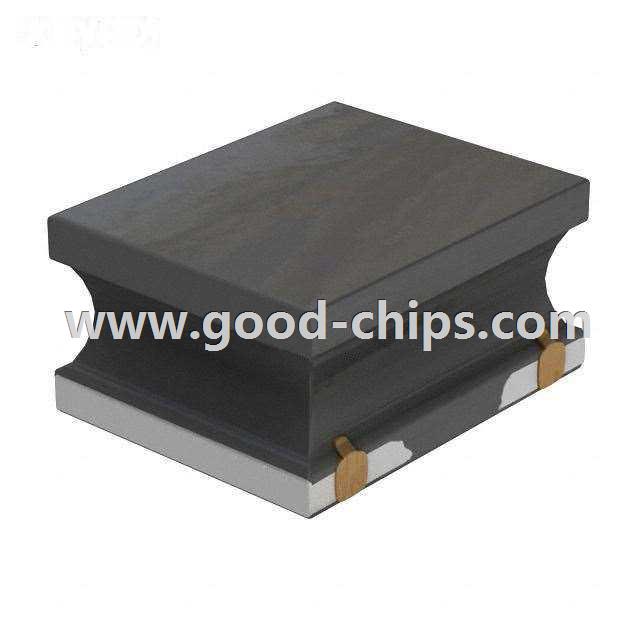

.jpg)
| Manufacturer Part Number: | VLS201612HBX-R33M-1 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 330nH Shielded Wirewound Inductor 4.34A 35 mOhm Max 0806 (2016 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VLS201612HBX-R33M-1 Datasheet |
| Internal Part Number | 898-VLS201612HBX-R33M-1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | VLS-HBX-1 Series Power Inductors | |
| Online Catalog | VLS Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | TDK Corporation | |
| Series | VLS-HBX-1 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Metal | |
| Inductance | 330nH | |
| Tolerance | ±20% | |
| Current Rating | 4.34A | |
| Current - Saturation | 3.87A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 35 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0806 (2016 Metric) | |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | |
| Height - Seated (Max) | 0.047" (1.20mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VLS201612HBX-R33M-1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VLS201612HBX-R33M-1 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of VLS201612HBX-R33M-1 is new and unused, you can buy VLS201612HBX-R33M-1 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VLS201612HBX-R33M-1.
