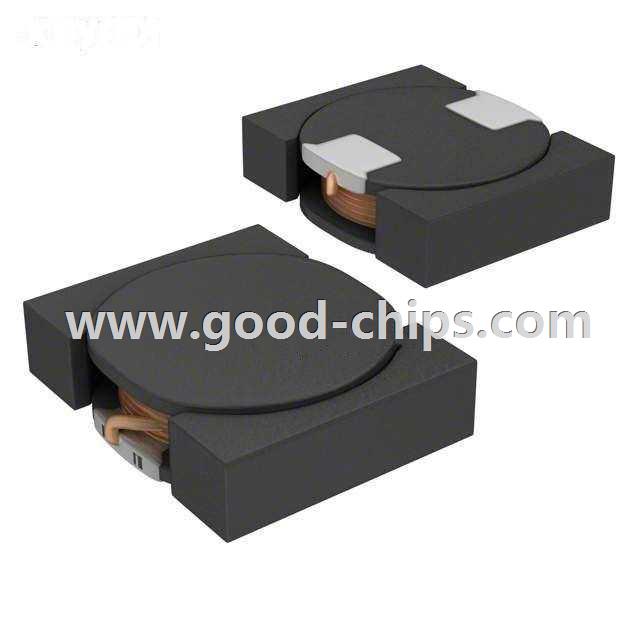

Manufacturer Part Number: | VLF403210MT-100M |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Fixed Inductors |
Available Quantity: | 10787 Pieces |
Unit Price: | Quote by Email |
Description: | 10µH Shielded Wirewound Inductor 1.04A 310 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VLF403210MT-100M Datasheet |
Internal Part Number | 898-VLF403210MT-100M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | VLF-M Series Low-Profile Power Inductor | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | VLF-M and VLF-MT Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | TDK Corporation | |
Series | VLF-M | |
Packaging | Digi-Reel® | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 10µH | |
Tolerance | ±20% | |
Current Rating | 1.04A | |
Current - Saturation | 700mA | |
Shielding | Shielded | |
DC Resistance (DCR) | 310 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 105°C | |
Frequency - Test | 1MHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.157" L x 0.126" W (4.00mm x 3.20mm) | |
Height - Seated (Max) | 0.039" (1.00mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VLF403210MT-100M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VLF403210MT-100M is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of VLF403210MT-100M is new and unused, you can buy VLF403210MT-100M TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VLF403210MT-100M.
