Manufacturer Part Number: | VLF3012AT-3R3MR87 |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Fixed Inductors |
Available Quantity: | 13010 Pieces |
Unit Price: | Quote by Email |

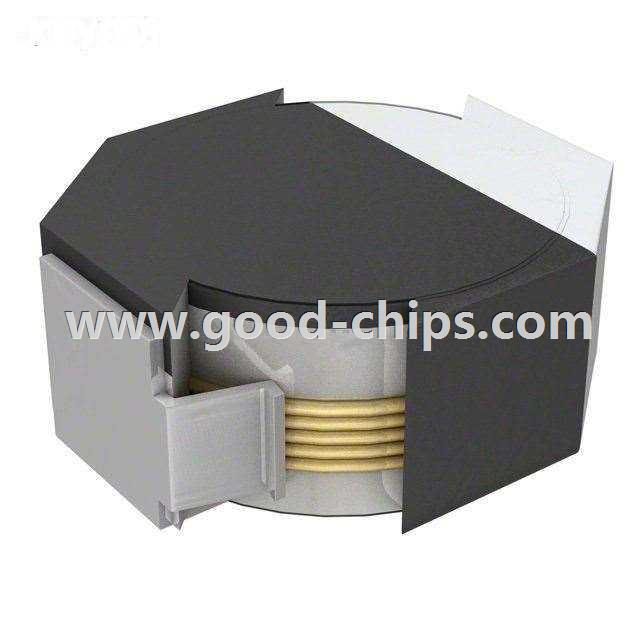

Description: | 3.3µH Shielded Wirewound Inductor 870mA 130 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VLF3012AT-3R3MR87 Datasheet |
Internal Part Number | 898-VLF3012AT-3R3MR87 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SMD Inductors | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | VLF Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | TDK Corporation | |
Series | VLF | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 3.3µH | |
Tolerance | ±20% | |
Current Rating | 870mA | |
Current - Saturation | 870mA | |
Shielding | Shielded | |
DC Resistance (DCR) | 130 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 105°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.110" L x 0.102" W (2.80mm x 2.60mm) | |
Height - Seated (Max) | 0.047" (1.20mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VLF3012AT-3R3MR87 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VLF3012AT-3R3MR87 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of VLF3012AT-3R3MR87 is new and unused, you can buy VLF3012AT-3R3MR87 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VLF3012AT-3R3MR87.
