Manufacturer Part Number: | VLF252015MT-3R3M-CA |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Fixed Inductors |
Available Quantity: | 10940 Pieces |
Unit Price: | Quote by Email |

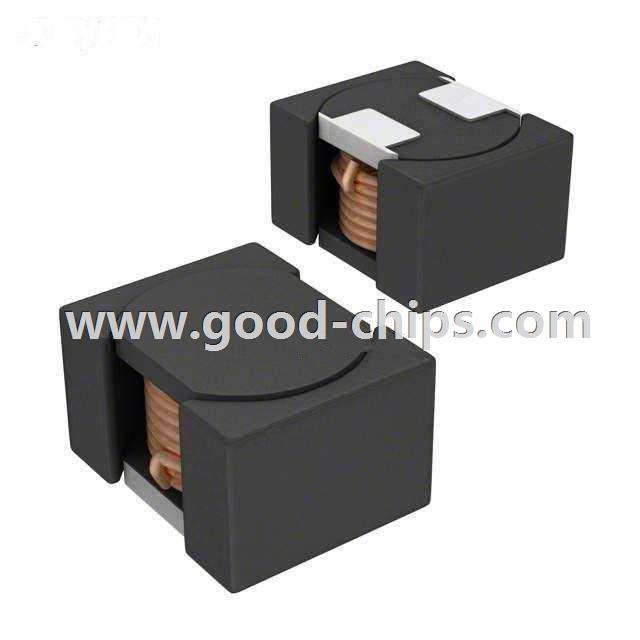

Description: | 3.3µH Shielded Wirewound Inductor 1.7A 100 mOhm Max 1008 (2520 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VLF252015MT-3R3M-CA Datasheet |
Internal Part Number | 898-VLF252015MT-3R3M-CA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | VLF-M and VLF-MT Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | TDK Corporation | |
Series | VLF-M-CA | |
Packaging | Digi-Reel® | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 3.3µH | |
Tolerance | ±20% | |
Current Rating | 1.7A | |
Current - Saturation | 790mA | |
Shielding | Shielded | |
DC Resistance (DCR) | 100 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 105°C | |
Frequency - Test | 1MHz | |
Mounting Type | Surface Mount | |
Package / Case | 1008 (2520 Metric) | |
Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
Height - Seated (Max) | 0.059" (1.50mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VLF252015MT-3R3M-CA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VLF252015MT-3R3M-CA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of VLF252015MT-3R3M-CA is new and unused, you can buy VLF252015MT-3R3M-CA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VLF252015MT-3R3M-CA.
