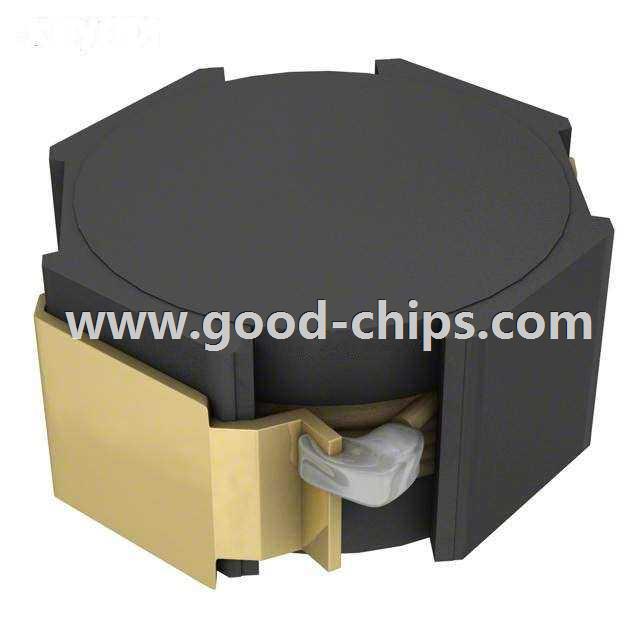

| Manufacturer Part Number: | VLF10045T-330M2R3 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 30787 Pieces |
| Unit Price: | Quote by Email |
| Description: | 33µH Shielded Wirewound Inductor 2.3A 81 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VLF10045T-330M2R3 Datasheet |
| Internal Part Number | 898-VLF10045T-330M2R3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | VLF Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | TDK Corporation | |
| Series | VLF | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 33µH | |
| Tolerance | ±20% | |
| Current Rating | 2.3A | |
| Current - Saturation | 2.3A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 81 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.394" L x 0.382" W (10.00mm x 9.70mm) | |
| Height - Seated (Max) | 0.177" (4.50mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VLF10045T-330M2R3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VLF10045T-330M2R3 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of VLF10045T-330M2R3 is new and unused, you can buy VLF10045T-330M2R3 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VLF10045T-330M2R3.
