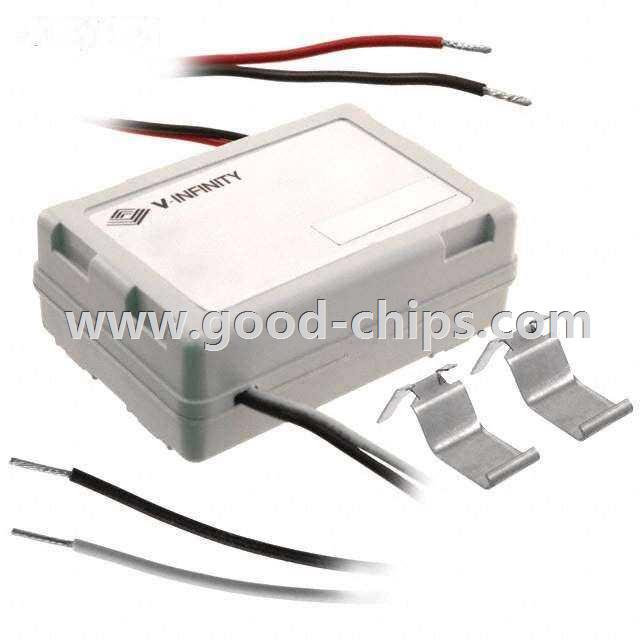

| Manufacturer Part Number: | VLED15-120-350 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | LED Drivers |
| Available Quantity: | 9158 Pieces |
| Unit Price: | Quote by Email |
| Description: | 350mA 24 ~ 48 V Constant Current LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VLED15-120-350 Datasheet |
| Internal Part Number | 898-VLED15-120-350 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | VLED15 AC-DC LED Power Supply EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
| RoHS Information | VLED15 Series Cert of Compliance | |
| Design Resources | Lighting Product Selector | |
| 3D Model | VLED15-120-350 | |
| Online Catalog | VLED15 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | CUI Inc. | |
| Series | VLED15 | |
| Part Status | Active | |
| Type | Constant Current | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 90VAC | |
| Voltage - Input (Max) | 135VAC | |
| Voltage - Output | 24 ~ 48 V | |
| Current - Output (Max) | 350mA | |
| Power (Watts) | 17W | |
| Voltage - Isolation | - | |
| Dimming | ELV, Triac | |
| Features | OCP, OTP, OVP, SCP | |
| Ratings | - | |
| Operating Temperature | -30°C ~ 90°C | |
| Efficiency | - | |
| Termination Style | Wire Leads | |
| Size / Dimension | 3.21" L x 2.21" W x 1.10" H (81.0mm x 56.0mm x 27.0mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | CE, ENEC, UL | |
| Weight | 0.001 KG | |
| Standard Package | 50 | |
| Application | Email for details | |
| Replacement Part | VLED15-120-350 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VLED15-120-350 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VLED15-120-350 is new and unused, you can buy VLED15-120-350 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VLED15-120-350.
