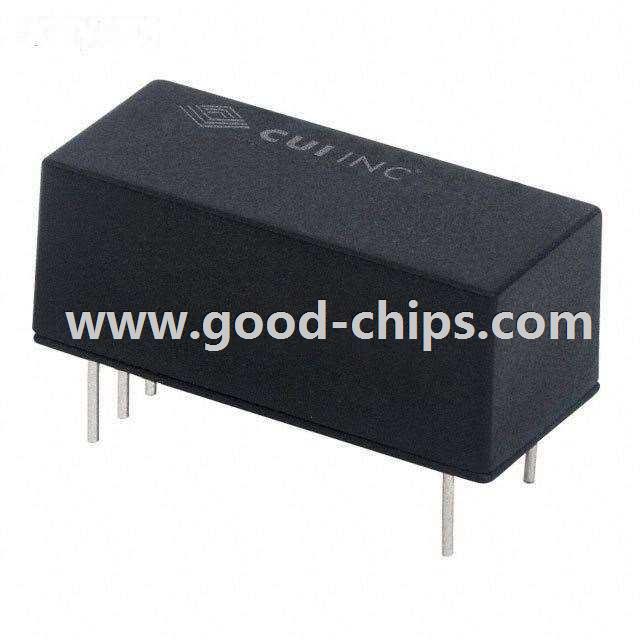

Manufacturer Part Number: | VLD25-350-DIP |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | LED Drivers |
Available Quantity: | 9044 Pieces |
Unit Price: | Quote by Email |
Description: | 350mA 3.3 ~ 36 V Constant Current LED Driver Buck Topology 1 Output |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VLD25-350-DIP Datasheet |
Internal Part Number | 898-VLD25-350-DIP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
RoHS Information | VLD25-DIP Series Cert of Compliance | |
Design Resources | Lighting Product Selector | |
3D Model | VLD25-350-DIP | |
Online Catalog | VLD25-DIP Series | |
Category | Power Supplies - Board Mount | |
Family | LED Drivers | |
Manufacturer | CUI Inc. | |
Series | VLD25-DIP | |
Part Status | Active | |
Type | Constant Current | |
Topology | Buck | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 5.5V | |
Voltage - Input (Max) | 46V | |
Voltage - Output | 3.3 ~ 36 V | |
Current - Output (Max) | 350mA | |
Power (Watts) | 13W | |
Dimming | Analog, PWM | |
Features | Remote On/Off, SCP | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 95% | |
Mounting Type | Through Hole | |
Package / Case | 6-DIP Module | |
Size / Dimension | 0.90" L x 0.40" W x 0.37" H (22.8mm x 10.2mm x 9.5mm) | |
Packaging | Tube | |
Approvals | CE, EN, IEC | |
Weight | 0.001 KG | |
Standard Package | 50 | |
Application | Email for details | |
Replacement Part | VLD25-350-DIP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VLD25-350-DIP is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VLD25-350-DIP is new and unused, you can buy VLD25-350-DIP CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VLD25-350-DIP.
