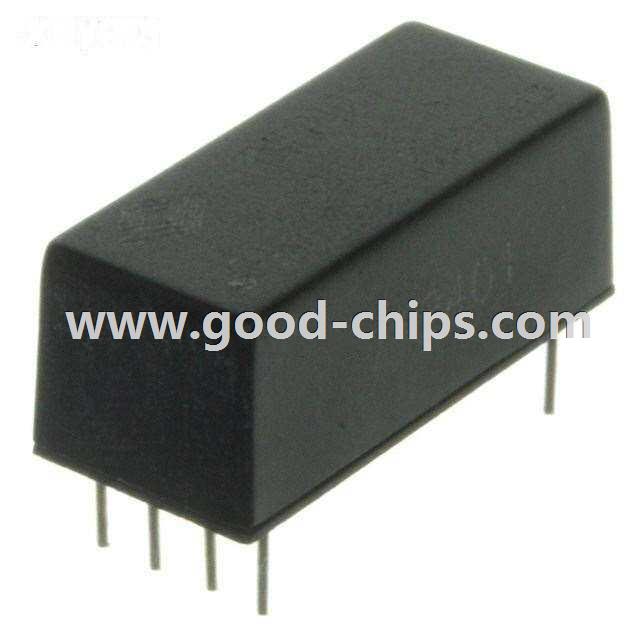

| Manufacturer Part Number: | VLD24-700 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 700mA 2 ~ 30 V Constant Current LED Driver Buck Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VLD24-700 Datasheet |
| Internal Part Number | 898-VLD24-700 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | VLD24 Series Cert of Compliance | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | VEFT1/VLD24 Series 19/Jul/2011 | |
| Category | Power Supplies - Board Mount | |
| Family | LED Drivers | |
| Manufacturer | CUI Inc. | |
| Series | VLD24 | |
| Part Status | Obsolete | |
| Type | Constant Current | |
| Topology | Buck | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 6.5V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output | 2 ~ 30 V | |
| Current - Output (Max) | 700mA | |
| Power (Watts) | 21W | |
| Dimming | Analog, PWM | |
| Features | Remote On/Off, SCP | |
| Operating Temperature | -40°C ~ 71°C | |
| Efficiency | 96% | |
| Mounting Type | Through Hole | |
| Package / Case | 6-DIP Module | |
| Size / Dimension | 0.90" L x 0.40" W x 0.37" H (22.8mm x 10.2mm x 9.5mm) | |
| Packaging | Tube | |
| Approvals | - | |
| Weight | 0.001 KG | |
| Standard Package | 20 | |
| Application | Email for details | |
| Replacement Part | VLD24-700 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VLD24-700 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VLD24-700 is new and unused, you can buy VLD24-700 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VLD24-700.
