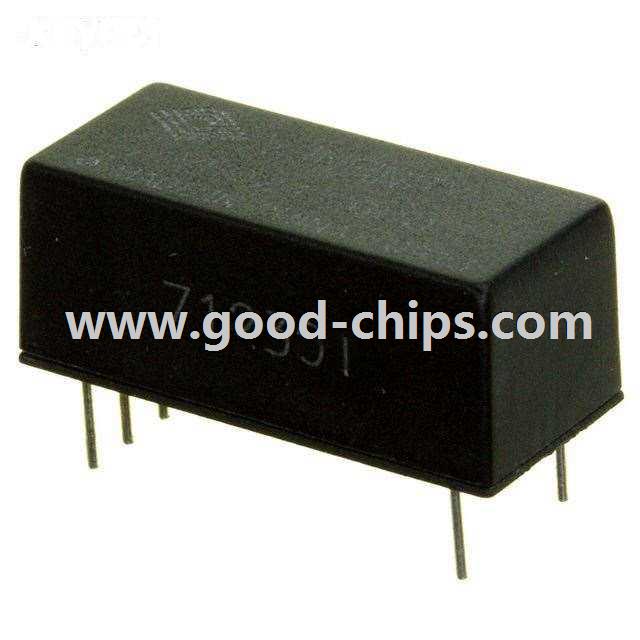

Manufacturer Part Number: | VLD24-600 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | LED Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 600mA 2 ~ 30 V Constant Current LED Driver Buck Topology 1 Output |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VLD24-600 Datasheet |
Internal Part Number | 898-VLD24-600 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | VLD24 Series Cert of Compliance | |
Design Resources | Lighting Product Selector | |
PCN Obsolescence/ EOL | VEFT1/VLD24 Series 19/Jul/2011 | |
Category | Power Supplies - Board Mount | |
Family | LED Drivers | |
Manufacturer | CUI Inc. | |
Series | VLD24 | |
Part Status | Obsolete | |
Type | Constant Current | |
Topology | Buck | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 6.5V | |
Voltage - Input (Max) | 36V | |
Voltage - Output | 2 ~ 30 V | |
Current - Output (Max) | 600mA | |
Power (Watts) | 18W | |
Dimming | Analog, PWM | |
Features | Remote On/Off, SCP | |
Operating Temperature | -40°C ~ 71°C | |
Efficiency | 96% | |
Mounting Type | Through Hole | |
Package / Case | 6-DIP Module | |
Size / Dimension | 0.90" L x 0.40" W x 0.37" H (22.8mm x 10.2mm x 9.5mm) | |
Packaging | Tube | |
Approvals | - | |
Weight | 0.001 KG | |
Standard Package | 20 | |
Application | Email for details | |
Replacement Part | VLD24-600 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VLD24-600 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VLD24-600 is new and unused, you can buy VLD24-600 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VLD24-600.
