Manufacturer Part Number: | VLCF5020T-3R3N2R0-3 |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Fixed Inductors |
Available Quantity: | 11975 Pieces |
Unit Price: | Quote by Email |
Description: | 3.3µH Shielded Wirewound Inductor 2.02A 65 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VLCF5020T-3R3N2R0-3 Datasheet |
Internal Part Number | 898-VLCF5020T-3R3N2R0-3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | VLCF Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | TDK Corporation | |
Series | VLCF | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 3.3µH | |
Tolerance | ±30% | |
Current Rating | 2.02A | |
Current - Saturation | 2.02A | |
Shielding | Shielded | |
DC Resistance (DCR) | 65 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 105°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | |
Height - Seated (Max) | 0.079" (2.00mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VLCF5020T-3R3N2R0-3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |

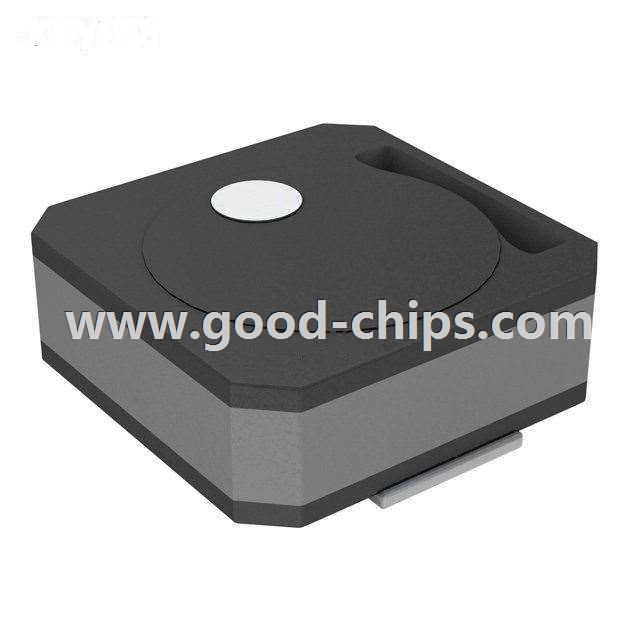

Picture / Image / Photo | Send via email |
VLCF5020T-3R3N2R0-3 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of VLCF5020T-3R3N2R0-3 is new and unused, you can buy VLCF5020T-3R3N2R0-3 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VLCF5020T-3R3N2R0-3.
