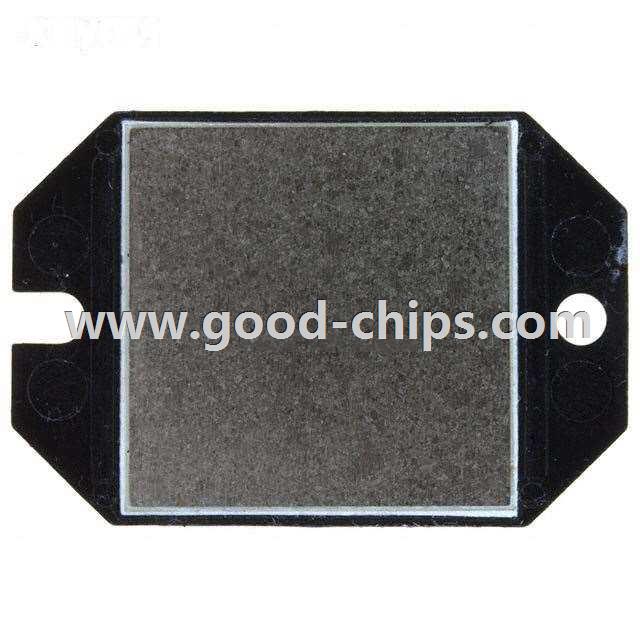

| Manufacturer Part Number: | VKI75-06P1 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module NPT Full Bridge Inverter 600V 69A 208W Chassis Mount ECO-PAC2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VKI75-06P1 Datasheet |
| Internal Part Number | 898-VKI75-06P1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | IXYS | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | NPT | |
| Configuration | Full Bridge Inverter | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 69A | |
| Power - Max | 208W | |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 75A | |
| Current - Collector Cutoff (Max) | 800µA | |
| Input Capacitance (Cies) @ Vce | 2.8nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | Yes | |
| Mounting Type | Chassis Mount | |
| Package / Case | ECO-PAC2 | |
| Supplier Device Package | ECO-PAC2 | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VKI75-06P1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VKI75-06P1 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of VKI75-06P1 is new and unused, you can buy VKI75-06P1 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VKI75-06P1.
