| Manufacturer Part Number: | VIPER37HE |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 12336 Pieces |
| Unit Price: | Quote by Email |

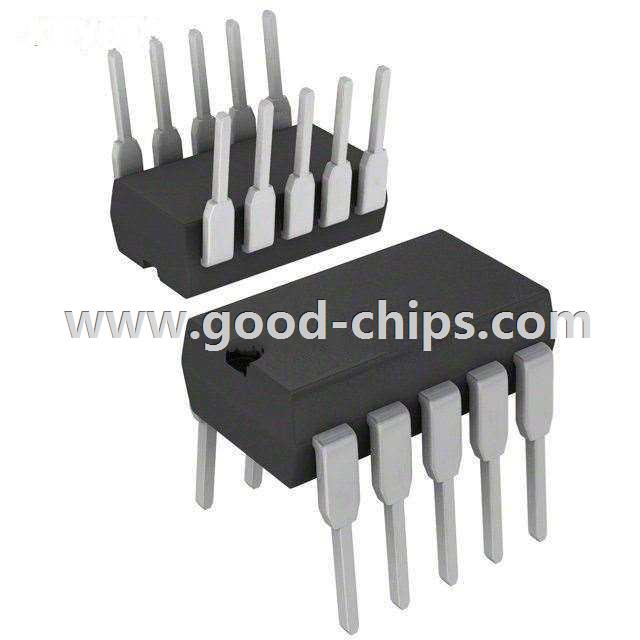

| Description: | Converter Offline Flyback Topology 115kHz 10-SDIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VIPER37HE Datasheet |
| Internal Part Number | 898-VIPER37HE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | VIPER37 View All Specifications | |
| Product Training Modules | Smart Grid Solutions: Smart Grid Distribution/Smart Meters High Voltage Offline Converters High Voltage Converters VIPer and Altair | |
| Video File | STMicroelectronics VIPerPlus Converter | Digi-Key Daily | |
| Featured Product | VIPerPlus Series Converters | |
| PCN Other | VIPer37 Die Rev/Wafer Fab 16/Oct/2015 | |
| Online Catalog | AC DC Converters, Offline Switchers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | STMicroelectronics | |
| Series | VIPer™ plus | |
| Packaging | Tube | |
| Part Status | Active | |
| Output Isolation | Isolated | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | 800V | |
| Topology | Flyback | |
| Voltage - Start Up | 14V | |
| Voltage - Supply (Vcc/Vdd) | 8.5 V ~ 23.5 V | |
| Duty Cycle | 80% Max | |
| Frequency - Switching | 115kHz | |
| Power (Watts) | 20W | |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage | |
| Control Features | - | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Package / Case | 10-SDIP (0.300", 7.62mm) | |
| Supplier Device Package | 10-SDIP | |
| Mounting Type | Through Hole | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VIPER37HE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VIPER37HE is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of VIPER37HE is new and unused, you can buy VIPER37HE STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VIPER37HE.
