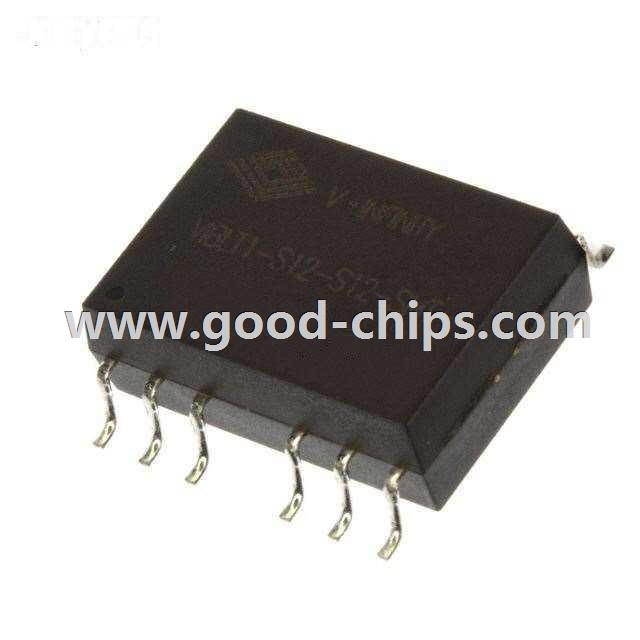

Manufacturer Part Number: | VIBLT1-S12-S12-SMT-TR |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 12V-OUT 1W SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VIBLT1-S12-S12-SMT-TR Datasheet |
Internal Part Number | 898-VIBLT1-S12-S12-SMT-TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | VIBLT1-SMT Series Cert of Compliance | |
PCN Obsolescence/ EOL | Multiple Series 30/Apr/2014 | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VIBLT-SMT | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 11.4V | |
Voltage - Input (Max) | 12.6V | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 83mA | |
Power (Watts) - Manufacture Series | 1W | |
Voltage - Isolation | 1kV (1000V) | |
Applications | ITE (Commercial) | |
Features | SCP | |
Mounting Type | Surface Mount | |
Package / Case | 14-SOIC (0.295", 7.50mm Width) (12 Leads) | |
Size / Dimension | 0.70" L x 0.50" W x 0.23" H (17.8mm x 12.7mm x 5.8mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 71% | |
Power (Watts) - Max | 1W | |
Standard Package | 400 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VIBLT1-S12-S12-SMT-TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VIBLT1-S12-S12-SMT-TR is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VIBLT1-S12-S12-SMT-TR is new and unused, you can buy VIBLT1-S12-S12-SMT-TR CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VIBLT1-S12-S12-SMT-TR.
