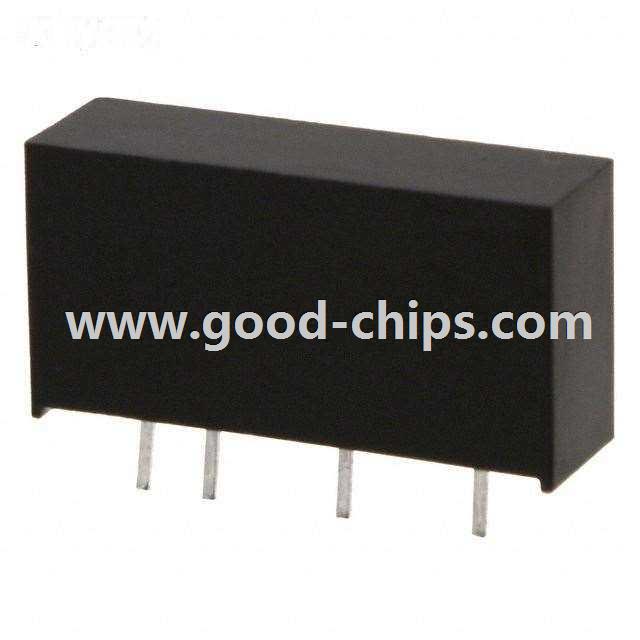

| Manufacturer Part Number: | VIBLSD1-S24-S12-SIP |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9762 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC 12V REG OUT 1W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VIBLSD1-S24-S12-SIP Datasheet |
| Internal Part Number | 898-VIBLSD1-S24-S12-SIP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Low Power DC-DC Converters EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
| RoHS Information | VIBLSD1-SIP Series Cert of Compliance | |
| 3D Model | VIBLSD1-S24-S12-SIP | |
| Online Catalog | VIBLSD1-SIP Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VIBLSD1-SIP | |
| Packaging | - | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 22.8V | |
| Voltage - Input (Max) | 25.2V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 83mA | |
| Power (Watts) - Manufacture Series | 1W | |
| Voltage - Isolation | 1kV (1000V) | |
| Applications | ITE (Commercial) | |
| Features | SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 6-SIP Module (4 Leads) | |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 73% | |
| Power (Watts) - Max | 1W | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VIBLSD1-S24-S12-SIP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VIBLSD1-S24-S12-SIP is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VIBLSD1-S24-S12-SIP is new and unused, you can buy VIBLSD1-S24-S12-SIP CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VIBLSD1-S24-S12-SIP.
