| Manufacturer Part Number: | VI-322-DP-RC-S |
|---|---|
| Manufacturer: | Varitronix |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 10831 Pieces |
| Unit Price: | Quote by Email |

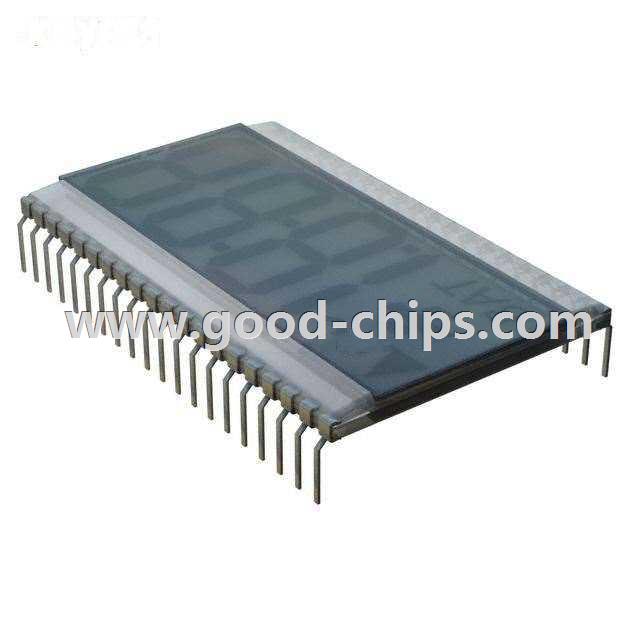

| Description: | Character LCD Display Module Reflective 7-Segment TN - Twisted Nematic 50.80mm x 30.48mm x 2.80mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VI-322-DP-RC-S Datasheet |
| Internal Part Number | 898-VI-322-DP-RC-S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | VI-322 Pin Out | |
| Online Catalog | Monochrome Segment LCD | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Varitronix | |
| Series | VI-322 | |
| Part Status | Active | |
| Number of Characters | 3.5 | |
| Display Format | 3.5 x 1 | |
| Character Format | 7-Segment | |
| Display Type | TN - Twisted Nematic | |
| Display Mode | Reflective | |
| Character Size | 12.70mm H x 7.10mm W | |
| Outline L x W x H | 50.80mm x 30.48mm x 2.80mm | |
| Viewing Area | 45.80mm L x 17.78mm W | |
| Backlight | - | |
| Voltage - Supply | 3V | |
| Dot Size | - | |
| Interface | - | |
| Operating Temperature | -10°C ~ 60°C | |
| Text Color | - | |
| Background Color | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VI-322-DP-RC-S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VI-322-DP-RC-S is in stock for immediate shipping now. We are the distributor of Varitronix all series components. The condition of VI-322-DP-RC-S is new and unused, you can buy VI-322-DP-RC-S Varitronix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VI-322-DP-RC-S.
