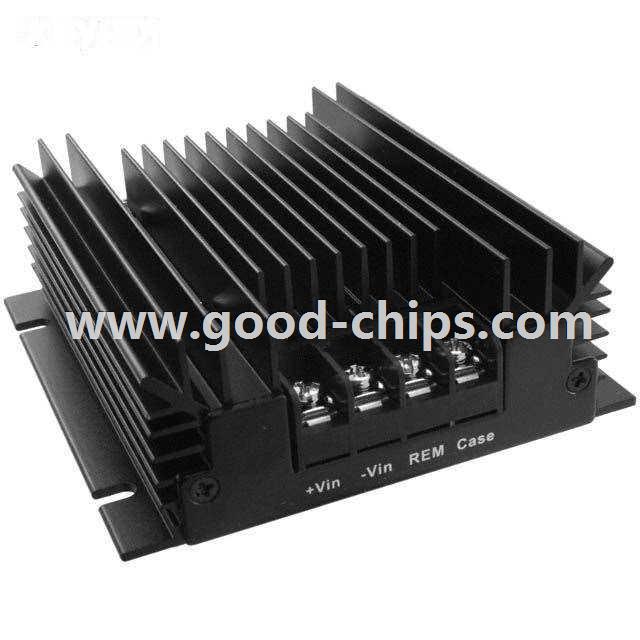

| Manufacturer Part Number: | VHK150W-Q24-S24 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9053 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC 150W 24V 6.5A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VHK150W-Q24-S24 Datasheet |
| Internal Part Number | 898-VHK150W-Q24-S24 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Power Chassis Mount DC-DC Converters EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
| RoHS Information | VHK150W Series Cert of Compliance | |
| Featured Product | Industrial Applications | |
| 3D Model | VHK150W-Q24-S24 | |
| Online Catalog | VHK150W and VHK150W-DIN Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VHK150W | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Isolated with Remote On/Off and UVLO | |
| Voltage - Input | 9 ~ 36 V | |
| Output | 24V | |
| Number of Outputs | 1 | |
| Output - 1 @ Current (Max) | 24 VDC @ 6.5A | |
| Output - 2 @ Current (Max) | - | |
| Output - 3 @ Current (Max) | - | |
| Output - 4 @ Current (Max) | - | |
| Power (Watts) | 150W | |
| Applications | - | |
| Mounting Type | Chassis Mount | |
| Operating Temperature | -40°C ~ 100°C | |
| Efficiency | 86.5% | |
| Package / Case | Module | |
| Size / Dimension | 4.23" L x 4.00" W x 1.50" H (107.5mm x 102.0mm x 38.0mm) | |
| Power (Watts) - Max | 156W | |
| Approvals | - | |
| Standard Package | 32 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VHK150W-Q24-S24 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VHK150W-Q24-S24 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VHK150W-Q24-S24 is new and unused, you can buy VHK150W-Q24-S24 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VHK150W-Q24-S24.
