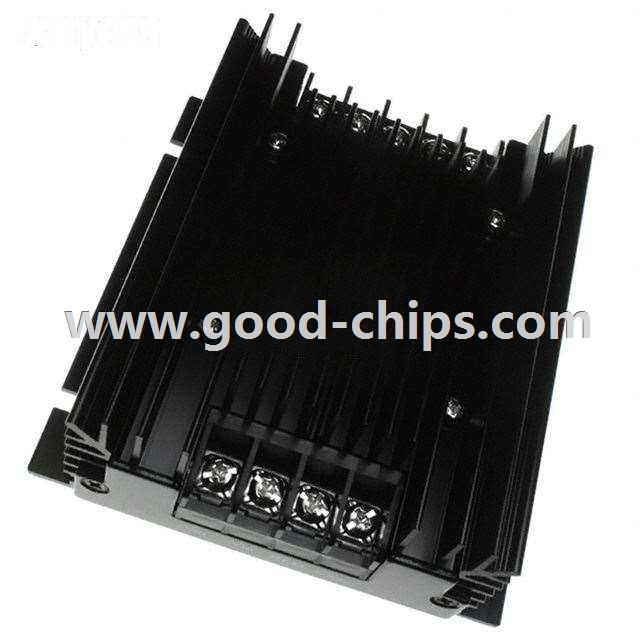

Manufacturer Part Number: | VHK100W-Q48-S48 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9040 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 48V 2.08A 100W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VHK100W-Q48-S48 Datasheet |
Internal Part Number | 898-VHK100W-Q48-S48 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | High Power Chassis Mount DC-DC Converters EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
RoHS Information | VHK100W Series Cert of Compliance | |
Featured Product | VHK Series Industrial Applications | |
3D Model | VHK100W-Q48-S48 | |
Online Catalog | VHK100W and VHK100W-DIN Series | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VHK100W | |
Packaging | Bulk | |
Part Status | Active | |
Type | Isolated | |
Voltage - Input | 18 ~ 75 V | |
Output | 48V | |
Number of Outputs | 1 | |
Output - 1 @ Current (Max) | 48 VDC @ 2.08A | |
Output - 2 @ Current (Max) | - | |
Output - 3 @ Current (Max) | - | |
Output - 4 @ Current (Max) | - | |
Power (Watts) | 100W | |
Applications | - | |
Mounting Type | Chassis Mount | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 85% | |
Package / Case | Module | |
Size / Dimension | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | |
Power (Watts) - Max | 100W | |
Approvals | - | |
Standard Package | 32 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VHK100W-Q48-S48 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VHK100W-Q48-S48 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VHK100W-Q48-S48 is new and unused, you can buy VHK100W-Q48-S48 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VHK100W-Q48-S48.
