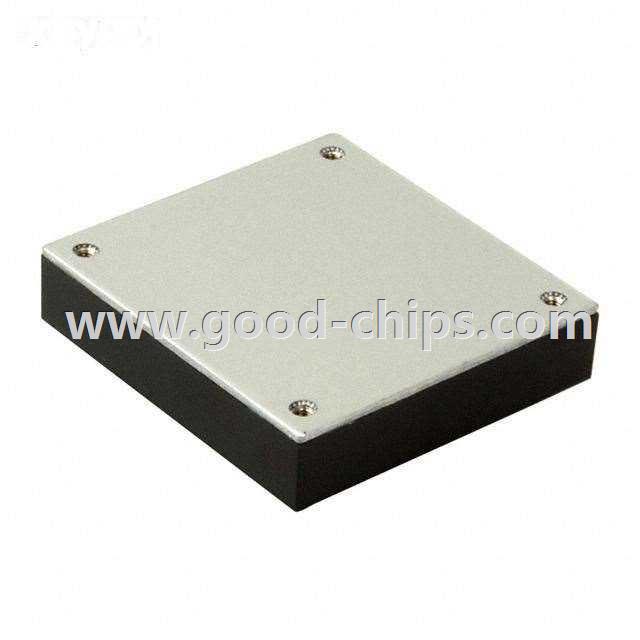

| Manufacturer Part Number: | VHB75W-Q48-S5 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9028 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC 75W 5V 15A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VHB75W-Q48-S5 Datasheet |
| Internal Part Number | 898-VHB75W-Q48-S5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
| RoHS Information | VHB75W Series Cert of Compliance | |
| Featured Product | Industrial Applications | |
| 3D Model | VHB75W-Q48-S5 | |
| Online Catalog | VHB75W Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VHB75W | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 18V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 15A | |
| Power (Watts) - Manufacture Series | 75W | |
| Voltage - Isolation | 1.5kV (1500V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 9-DIP Module, 1/2 Brick | |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | |
| Operating Temperature | -40°C ~ 100°C | |
| Efficiency | 83% | |
| Power (Watts) - Max | 75W | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VHB75W-Q48-S5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VHB75W-Q48-S5 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VHB75W-Q48-S5 is new and unused, you can buy VHB75W-Q48-S5 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VHB75W-Q48-S5.
