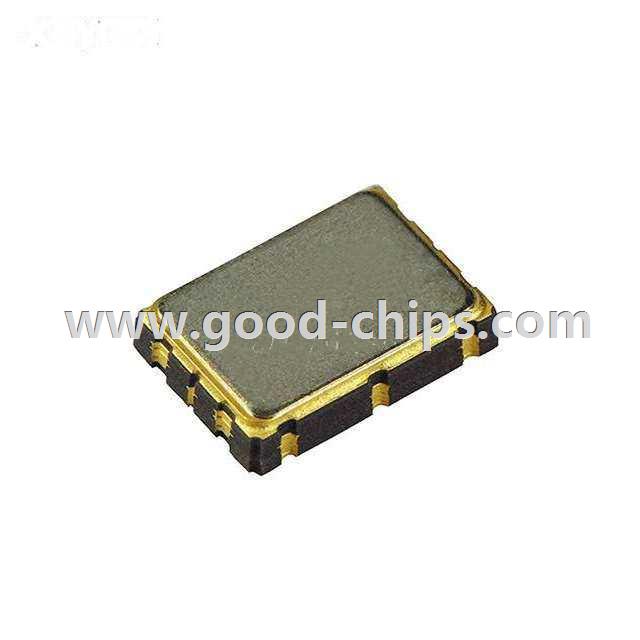

| Manufacturer Part Number: | VG7050ECN-SM20T005-CJGHPF3 |
|---|---|
| Manufacturer: | EPSON |
| Product Category: | Programmable Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 50MHz ~ 800MHz LVPECL VCXO Programmable Oscillator Surface Mount 3.3V 90mA Enable/Disable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VG7050ECN-SM20T005-CJGHPF3 Datasheet |
| Internal Part Number | 898-VG7050ECN-SM20T005-CJGHPF3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | VG7050EAN Application Manual | |
| Featured Product | VG7050ECN Low-Jitter Programmable VCXO | |
| Online Catalog | VG7050ECN Series | |
| Category | Crystals and Oscillators | |
| Family | Programmable Oscillators | |
| Manufacturer | EPSON | |
| Series | VG7050ECN | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | VCXO | |
| Programmable Type | Blank (User Must Program) | |
| Available Frequency Range | 50MHz ~ 800MHz | |
| Function | Enable/Disable | |
| Output | LVPECL | |
| Voltage - Supply | 3.3V | |
| Frequency Stability | - | |
| Frequency Stability (Total) | ±50ppm | |
| Operating Temperature | -40°C ~ 85°C | |
| Spread Spectrum Bandwidth | - | |
| Current - Supply (Max) | 90mA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-SMD (No Lead) (QFN, LCC) | |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
| Height | 0.067" (1.70mm) | |
| Current - Supply (Disable) (Max) | 70mA | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VG7050ECN-SM20T005-CJGHPF3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VG7050ECN-SM20T005-CJGHPF3 is in stock for immediate shipping now. We are the distributor of EPSON all series components. The condition of VG7050ECN-SM20T005-CJGHPF3 is new and unused, you can buy VG7050ECN-SM20T005-CJGHPF3 EPSON with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VG7050ECN-SM20T005-CJGHPF3.
