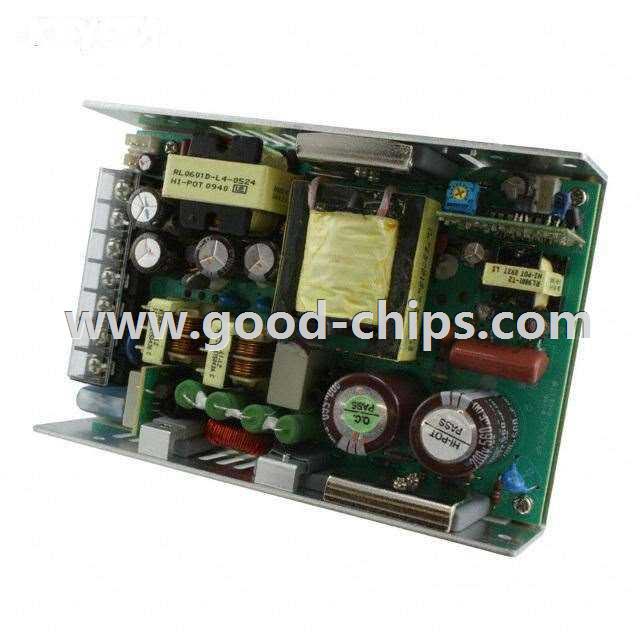

| Manufacturer Part Number: | VF-D320-D524A-1 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 5V 24V 320W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VF-D320-D524A-1 Datasheet |
| Internal Part Number | 898-VF-D320-D524A-1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | VF-D320-D512A Cert of Compliance | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VF-D320 | |
| Part Status | Active | |
| Type | Open Frame | |
| Number of Outputs | 2 | |
| Voltage - Input | 90 ~ 132 VAC, 180 ~ 264 VAC | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | 24V | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 30A, 8.33A | |
| Power (Watts) | 320W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 75% | |
| Operating Temperature | 0°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, PFC, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | |
| Minimum Load Required | - | |
| Approvals | CB, CE, cURus, TUVgs | |
| Power (Watts) - Max | 320W | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VF-D320-D524A-1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VF-D320-D524A-1 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VF-D320-D524A-1 is new and unused, you can buy VF-D320-D524A-1 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VF-D320-D524A-1.
