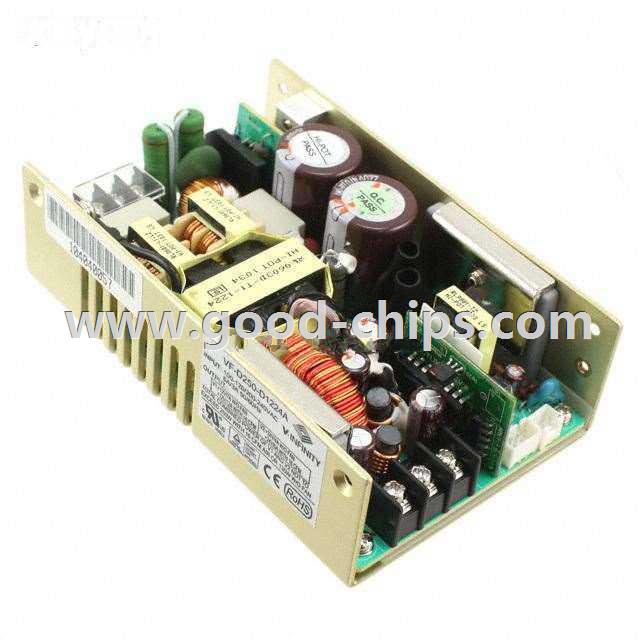

| Manufacturer Part Number: | VF-D250-D1224A |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9137 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 12V 24V 250W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VF-D250-D1224A Datasheet |
| Internal Part Number | 898-VF-D250-D1224A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
| RoHS Information | VF-DxxA Series Cert of Compliance | |
| Featured Product | VF Series Power Supplies | |
| 3D Model | VF-D250-D1224A | |
| Online Catalog | VF-D250 Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | - | |
| Part Status | Active | |
| Type | Open Frame | |
| Number of Outputs | 2 | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | 24V | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 12A, 6A | |
| Power (Watts) | 250W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 70% | |
| Operating Temperature | 0°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, Remote On/Off | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 5.00" L x 3.20" W x 1.50" H (127.0mm x 81.3mm x 38.1mm) | |
| Minimum Load Required | - | |
| Approvals | CB, CE, cURus, TUVgs | |
| Power (Watts) - Max | 250W | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VF-D250-D1224A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VF-D250-D1224A is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VF-D250-D1224A is new and unused, you can buy VF-D250-D1224A CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VF-D250-D1224A.
