| Manufacturer Part Number: | VESD15A1-HD1-G4-08 |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 15VWM 27VC LLP1006-2L |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VESD15A1-HD1-G4-08 Datasheet |
| Internal Part Number | 898-VESD15A1-HD1-G4-08 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ESD Protection Family | |
| Online Catalog | VESD Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Vishay Semiconductor Diodes Division | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 15V (Max) | |
| Voltage - Breakdown (Min) | 15.5V | |
| Voltage - Clamping (Max) @ Ipp | 27V | |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) | |
| Power - Peak Pulse | 150W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | 45pF @ 1MHz | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | SOD-882 | |

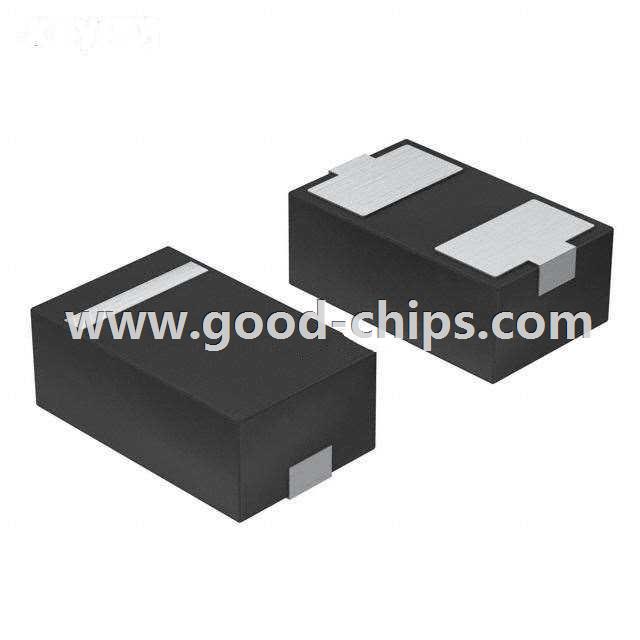

| Supplier Device Package | LLP1006-2L | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VESD15A1-HD1-G4-08 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VESD15A1-HD1-G4-08 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of VESD15A1-HD1-G4-08 is new and unused, you can buy VESD15A1-HD1-G4-08 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VESD15A1-HD1-G4-08.
