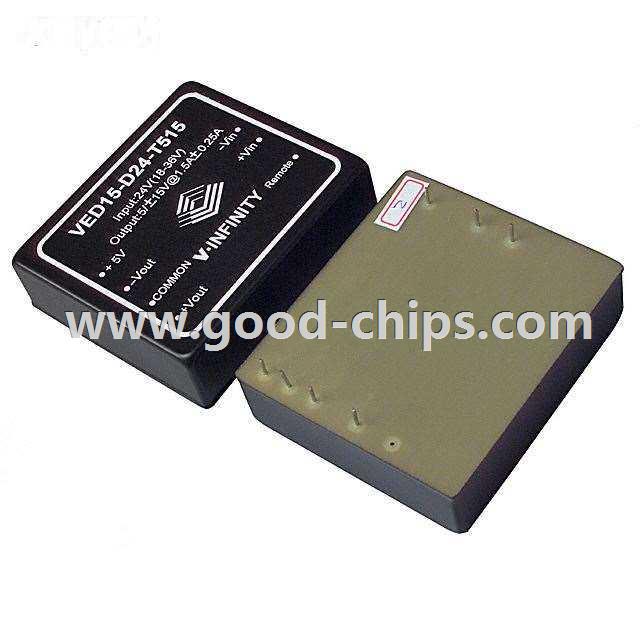

| Manufacturer Part Number: | VED15-D24-T515 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER +/-5V 15W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VED15-D24-T515 Datasheet |
| Internal Part Number | 898-VED15-D24-T515 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VED15 | |
| Packaging | - | |
| Part Status | Obsolete | |
| Type | Isolated Module | |
| Number of Outputs | 3 | |
| Voltage - Input (Min) | 18V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | 15V | |
| Voltage - Output 3 | -15V | |
| Current - Output (Max) | 1.5A, 250mA, 250mA | |
| Power (Watts) - Manufacture Series | 15W | |
| Voltage - Isolation | 500V | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP Module | |
| Size / Dimension | 3.00" L x 2.56" W x 0.83" H (76.2mm x 65.0mm x 21.1mm) | |
| Operating Temperature | -25°C ~ 71°C | |
| Efficiency | 80% | |
| Power (Watts) - Max | 15W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VED15-D24-T515 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VED15-D24-T515 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VED15-D24-T515 is new and unused, you can buy VED15-D24-T515 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VED15-D24-T515.
