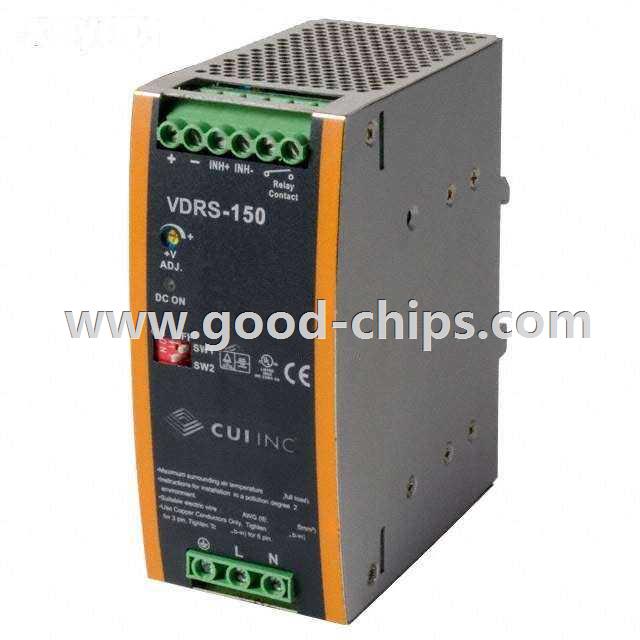

| Manufacturer Part Number: | VDRS-150-24 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9030 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 24V 150W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VDRS-150-24 Datasheet |
| Internal Part Number | 898-VDRS-150-24 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Factor Correction in Ac-Dc Power Supplies EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
| RoHS Information | VDRS-150 Series Cert of Compliance | |
| 3D Model | VDRS-150-24 | |
| Online Catalog | VDRS-150 Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VDRS-150 | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 88 ~ 264 VAC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 6.3A | |
| Power (Watts) | 150W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 4.242kV (4242V) | |
| Efficiency | 87% | |
| Operating Temperature | -10°C ~ 70°C | |
| Features | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | |
| Mounting Type | DIN Rail | |
| Size / Dimension | 3.93" L x 2.19" W x 4.92" H (99.8mm x 55.5mm x 125.0mm) | |
| Minimum Load Required | - | |
| Approvals | CE, cULus, cURus, TUV | |
| Power (Watts) - Max | 150W | |
| Standard Package | 12 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VDRS-150-24 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VDRS-150-24 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VDRS-150-24 is new and unused, you can buy VDRS-150-24 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VDRS-150-24.
