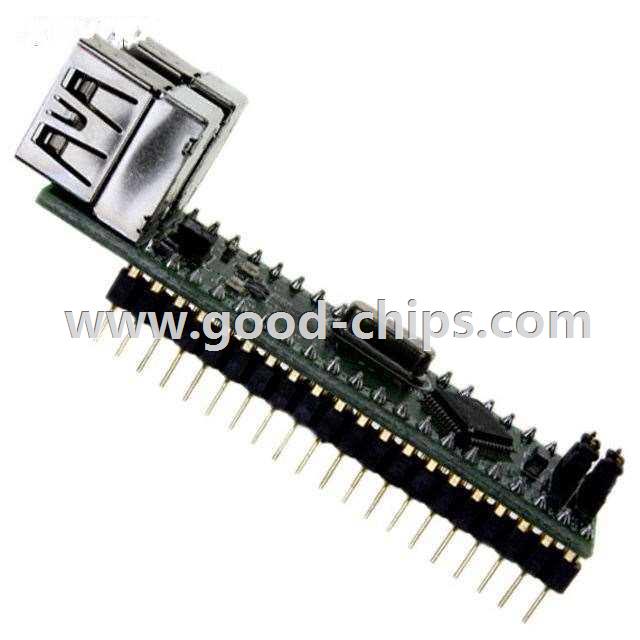

| Manufacturer Part Number: | VDIP2 |
|---|---|
| Manufacturer: | FTDI, Future Technology Devices International Ltd |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9072 Pieces |
| Unit Price: | Quote by Email |
| Description: | VNC1L-1A Vinculum Series Interface, USB 2.0 Host/Controller Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VDIP2 Datasheet |
| Internal Part Number | 898-VDIP2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Submitting Modified Drivers for Windows Hrdw Certification Drivers Installation Guide for Windows VISTA Drivers Installation Guide for Windows XP Device EEPROM Programming Using Vinculum VNC1L Using the Modem Emulation Mode in VCP Driver Configuring VCP Drivers to use Location IDs Data Throughput, Latency and Handshaking Optimizing D2xx Data Throughput Drivers Installation Guide for Windows 7 Aliasing VCP Baud Rates Accessing The EEPROM User Area of Devices How COM Ports Are Allocated On Driver Installation Re-Assigning COM Port Numbers Using Windows Registry D2XX Access Using PERL Interface PERL 5.0 Prog Guide Drivers Installation Guide for MAC OSX Detecting USB Device Insertion and Removal Driver Installation Guide for Windows 8 Windows Driver Pre-Installation Windows Combined Driver Model Drivers Installation Guide for Linux ComPort Assignment Utility Guide | |
| Product Training Modules | USB Introduction VNC1L-1A USB Host Controller | |
| Design Resources | Development Tool Selector | |
| Online Catalog | VDIP2 Vinculum VNC1L Module | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | FTDI, Future Technology Devices International Ltd | |
| Series | Vinculum | |
| Part Status | Active | |
| Main Purpose | Interface, USB 2.0 Host/Controller | |
| Embedded | Yes, ASIC | |
| Utilized IC / Part | VNC1L-1A | |
| Primary Attributes | Dual A-Type Connector, UART / Parallel FIFO / SPI Interfaces | |
| Secondary Attributes | Firmware Update via USB Flash Drive or UART, Traffic LEDs | |
| Supplied Contents | Board | |
| Standard Package | 5 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VDIP2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VDIP2 is in stock for immediate shipping now. We are the distributor of FTDI, Future Technology Devices International Ltd all series components. The condition of VDIP2 is new and unused, you can buy VDIP2 FTDI, Future Technology Devices International Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VDIP2.
