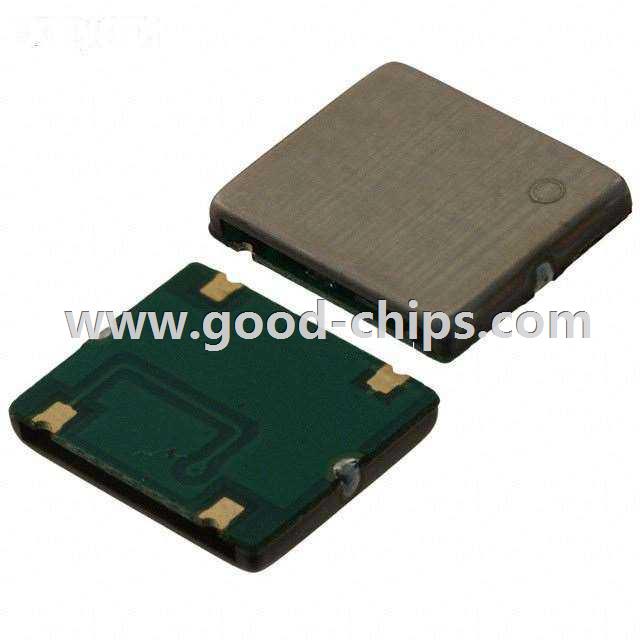

VC-TXO-39SMX-100-TR

VC-TXO-39SMX-100-TR
Manufacturer Part Number:VC-TXO-39SMX-100-TR
Manufacturer:
Product Category:Oscillators
Available Quantity:9510 Pieces
Unit Price:Quote by Email
Description:10MHz Clipped Sine Wave VCTCXO Oscillator Surface Mount 3V 1.5mA
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: VC-TXO-39SMX-100-TR Datasheet
VC-TXO-39SMX-100-TR´s Parameters
Internal Part Number898-VC-TXO-39SMX-100-TR
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog VC-TXO-35SMX Series
CategoryCrystals and Oscillators
FamilyOscillators
ManufacturerECS Inc.
SeriesVC-TXO-39SMX
PackagingTape & Reel (TR)
Part StatusActive
TypeVCTCXO
Frequency10MHz
Function-
OutputClipped Sine Wave
Voltage - Supply3V
Frequency Stability±2.5ppm
Operating Temperature-30°C ~ 75°C
Current - Supply (Max)1.5mA
Ratings-
Mounting TypeSurface Mount
Size / Dimension0.449" L x 0.378" W (11.40mm x 9.60mm)
Height0.098" (2.50mm)
Package / Case4-SMD, No Lead (DFN, LCC)
Current - Supply (Disable) (Max)-
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement PartVC-TXO-39SMX-100-TR
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

VC-TXO-39SMX-100-TR is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of VC-TXO-39SMX-100-TR is new and unused, you can buy VC-TXO-39SMX-100-TR ECS Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for VC-TXO-39SMX-100-TR.
