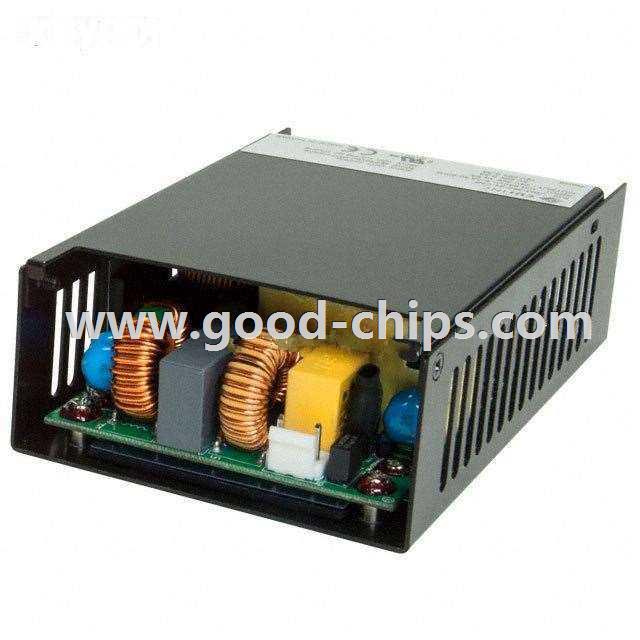

Manufacturer Part Number: | VBM-360-24-CNF |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | AC DC Converters |
Available Quantity: | 9065 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 24V 360W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VBM-360-24-CNF Datasheet |
Internal Part Number | 898-VBM-360-24-CNF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
RoHS Information | VBM-360-CNF Series Cert of Compliance | |
Featured Product | Baseplate-Cooled AC-DC Power Supplies | |
Online Catalog | VBM-360 Series | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VBM-360 | |
Part Status | Active | |
Type | Enclosed | |
Number of Outputs | 1 | |
Voltage - Input | 90 ~ 264 VAC | |
Voltage - Output 1 | 24V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 14.8A | |
Power (Watts) | 360W | |
Applications | ITE (Commercial) | |
Voltage - Isolation | 3kV (3000V) | |
Efficiency | 94% | |
Operating Temperature | -20°C ~ 85°C (With Derating) | |
Features | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | |
Mounting Type | Chassis Mount | |
Size / Dimension | 5.00" L x 3.00" W x 1.60" H (127.0mm x 76.2mm x 40.6mm) | |
Minimum Load Required | - | |
Approvals | CE, cURus, GS | |
Power (Watts) - Max | 355W | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VBM-360-24-CNF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VBM-360-24-CNF is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VBM-360-24-CNF is new and unused, you can buy VBM-360-24-CNF CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VBM-360-24-CNF.
