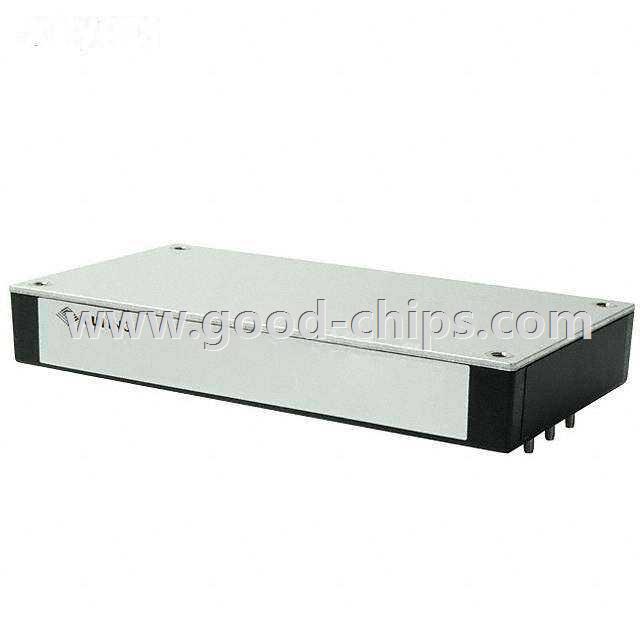

Manufacturer Part Number: | VBM-100-24 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | AC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 24V 100W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VBM-100-24 Datasheet |
Internal Part Number | 898-VBM-100-24 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
RoHS Information | VBM Series Cert of Compliance | |
Featured Product | Ultra-Low-Profile 100 W Baseplate-Cooled AC-DC Power Supply | |
3D Model | VBM-100-24 | |
Online Catalog | VBM-100 Series | |
Category | Power Supplies - Board Mount | |
Family | AC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VBM-100 | |
Part Status | Active | |
Number of Outputs | 1 | |
Voltage - Input | 90 ~ 264 VAC | |
Voltage - Output 1 | 24V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 4.2A | |
Power (Watts) | 100W | |
Power Supply Type | Switching (Closed Frame) | |
Applications | ITE (Commercial) | |
Features | OTP, OVP, SCP | |
Operating Temperature | -20°C ~ 85°C | |
Efficiency | 91% | |
Mounting Type | Through Hole | |
Size / Dimension | 4.60" L x 2.40" W x 0.67" H (116.8mm x 61.0mm x 17.0mm) | |
Power (Watts) - Max | 100W | |
Line Regulation | 0.5% | |
Load Regulation | ±1% | |
Approvals | CE, cULus, EN, IEC | |
Weight | 0.001 KG | |
Standard Package | 30 | |
Application | Email for details | |
Replacement Part | VBM-100-24 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VBM-100-24 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VBM-100-24 is new and unused, you can buy VBM-100-24 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VBM-100-24.
