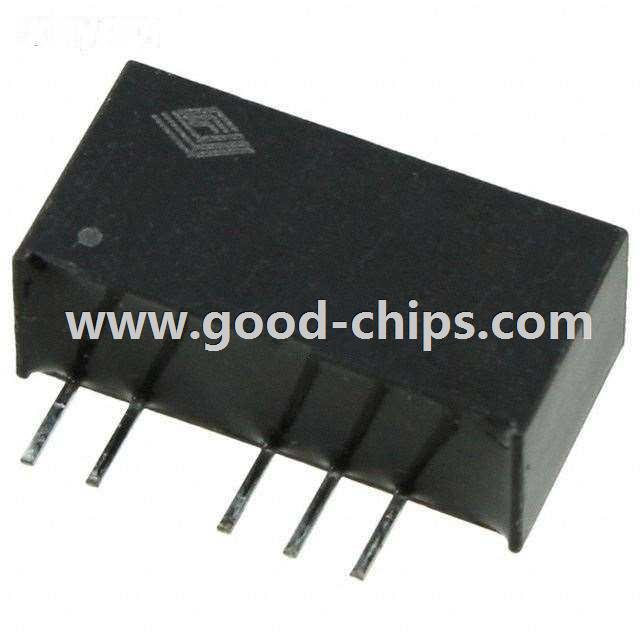

Manufacturer Part Number: | VASD2-S5-D15-SIP |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 2W +/-15V 67MA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VASD2-S5-D15-SIP Datasheet |
Internal Part Number | 898-VASD2-S5-D15-SIP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | VASD2-SIP Cert of Compliance | |
PCN Obsolescence/ EOL | Multiple Series 31/Jul/2013 | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VASD2-SIP | |
Packaging | Tube | |
Part Status | Obsolete | |
Type | Isolated Module | |
Number of Outputs | 2 | |
Voltage - Input (Min) | 4.5V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output 1 | 15V | |
Voltage - Output 2 | -15V | |
Voltage - Output 3 | - | |
Current - Output (Max) | 67mA, 67mA | |
Power (Watts) - Manufacture Series | 2W | |
Voltage - Isolation | 1kV (1000V) | |
Applications | ITE (Commercial) | |
Features | SCP | |
Mounting Type | Through Hole | |
Package / Case | 7-SIP Module (5 Leads) | |
Size / Dimension | 0.78" L x 0.28" W x 0.39" H (19.7mm x 7.0mm x 10.0mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 85% | |
Power (Watts) - Max | 2W | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VASD2-S5-D15-SIP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VASD2-S5-D15-SIP is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VASD2-S5-D15-SIP is new and unused, you can buy VASD2-S5-D15-SIP CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VASD2-S5-D15-SIP.
