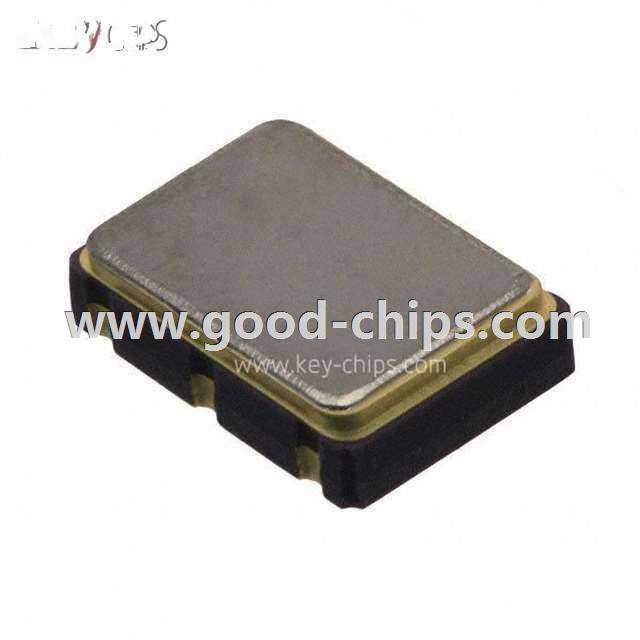

Manufacturer Part Number: | V803-125.0M |
---|---|
Manufacturer: | Connor-Winfield |
Product Category: | Oscillators |
Available Quantity: | 9040 Pieces |
Unit Price: | Quote by Email |
Description: | 125MHz LVCMOS VCXO Oscillator Surface Mount 3.3V 30mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | V803-125.0M Datasheet |
Internal Part Number | 898-V803-125.0M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | V803 Series | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | Connor-Winfield | |
Series | V803 | |
Packaging | Cut Strip | |
Part Status | Active | |
Type | VCXO | |
Frequency | 125MHz | |
Function | Enable/Disable | |
Output | LVCMOS | |
Voltage - Supply | 3.3V | |
Frequency Stability | ±15ppm | |
Operating Temperature | 0°C ~ 70°C | |
Current - Supply (Max) | 30mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
Height | 0.071" (1.80mm) | |
Package / Case | 6-SMD, No Lead (DFN, LCC) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | V803-125.0M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
V803-125.0M is in stock for immediate shipping now. We are the distributor of Connor-Winfield all series components. The condition of V803-125.0M is new and unused, you can buy V803-125.0M Connor-Winfield with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for V803-125.0M.
