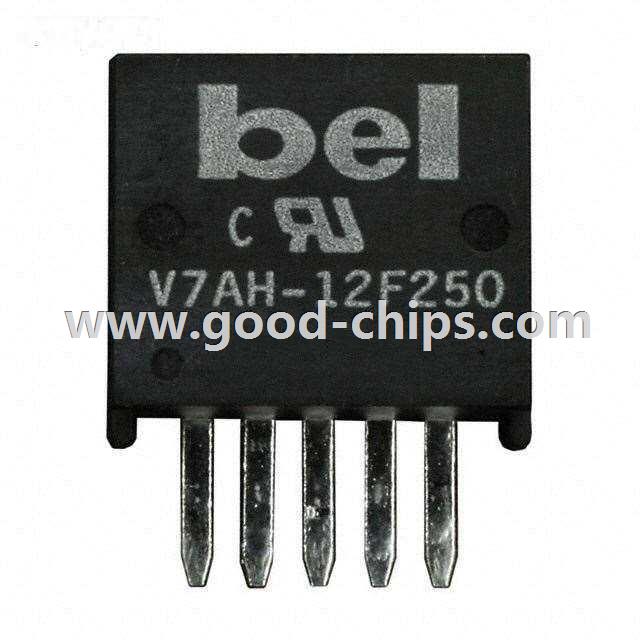

| Manufacturer Part Number: | V7AH-12F2500 |
|---|---|
| Manufacturer: | Bel Fuse Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC/DC 12A 2.5V OUT VERT MNT |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | V7AH-12F2500 Datasheet |
| Internal Part Number | 898-V7AH-12F2500 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Power Solutions and Protection | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Bel Fuse Inc. | |
| Series | V7AH | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3.6V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output 1 | 2.5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 12A | |
| Power (Watts) - Manufacture Series | 30W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, SCP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 5-SIP Module | |
| Size / Dimension | 0.70" L x 0.31" W x 0.65" H (17.8mm x 7.9mm x 16.5mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 89% | |
| Power (Watts) - Max | 30W | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | V7AH-12F2500 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
V7AH-12F2500 is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of V7AH-12F2500 is new and unused, you can buy V7AH-12F2500 Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for V7AH-12F2500.
