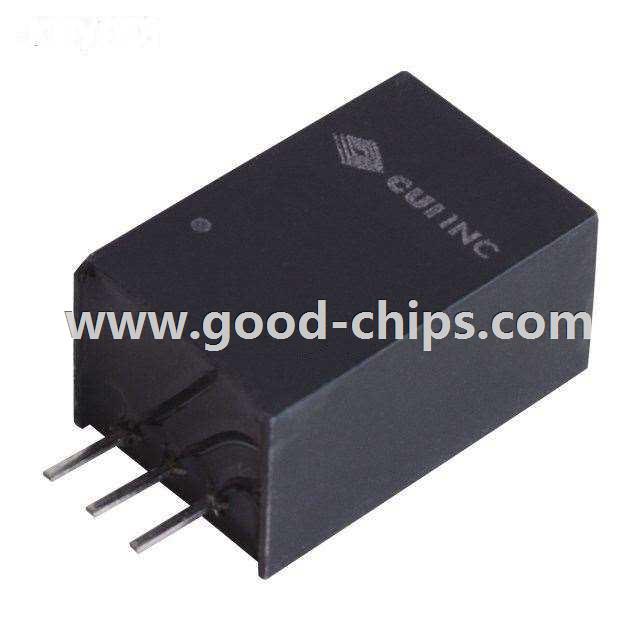

| Manufacturer Part Number: | V7806-1000 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9303 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC REG 6.5V 1A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | V7806-1000 Datasheet |
| Internal Part Number | 898-V7806-1000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Efficiency Switching DC Regulator EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
| RoHS Information | V78xx-1000 Cert of Compliance | |
| Featured Product | V78XX Series V78 Switching Regulators – CUI | |
| 3D Model | V7806-1000 | |
| Online Catalog | V78XX-1000 Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | V78-1000 | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Linear Regulator Replacement | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 9V | |
| Voltage - Input (Max) | 32V | |
| Voltage - Output 1 | 6.5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 1A | |
| Power (Watts) - Manufacture Series | 6.5W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | OTP, SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 3-SIP Module | |
| Size / Dimension | 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 94% | |
| Power (Watts) - Max | 6.5W | |
| Standard Package | 44 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | V7806-1000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
V7806-1000 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of V7806-1000 is new and unused, you can buy V7806-1000 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for V7806-1000.
