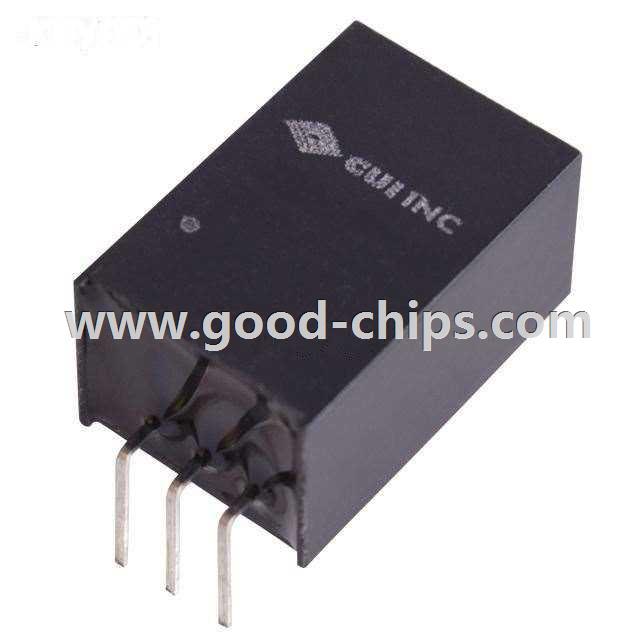

| Manufacturer Part Number: | V7802-1500R |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERT DC/DC REG 2.5V 1500MA RA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | V7802-1500R Datasheet |
| Internal Part Number | 898-V7802-1500R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | V780x-1500R Cert of Compliance | |
| Featured Product | V78XX Series V78 Switching Regulators – CUI | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | V78-1500 | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Type | Linear Regulator Replacement | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.75V | |
| Voltage - Input (Max) | 18V | |
| Voltage - Output 1 | 2.5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 1.5A | |
| Power (Watts) - Manufacture Series | 3.75W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | OTP, SCP | |
| Mounting Type | Through Hole, Right Angle | |
| Package / Case | 3-SIP Module | |
| Size / Dimension | 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 88% | |
| Power (Watts) - Max | 3.75W | |
| Standard Package | 44 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | V7802-1500R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
V7802-1500R is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of V7802-1500R is new and unused, you can buy V7802-1500R CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for V7802-1500R.
