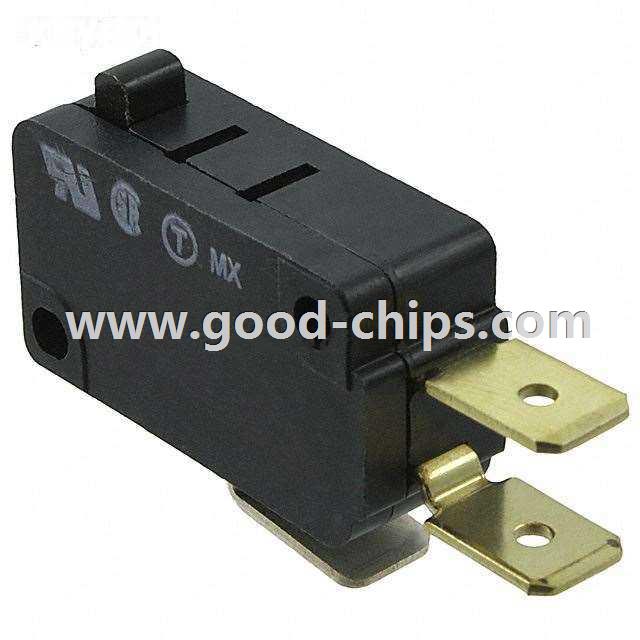

| Manufacturer Part Number: | V7-1C13E9 |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9096 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 15A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | V7-1C13E9 Datasheet |
| Internal Part Number | 898-V7-1C13E9 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Electromechanical Switch Technology | |
| Featured Product | Honeywell -MICRO SWITCH V7 Series | |
| Online Catalog | MICRO SWITCH™ V7 Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | V7 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 15A (AC), 500mA (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 125V | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 150gf | |
| Release Force | 25gf | |
| Pretravel | 0.047" (1.2mm) | |
| Differential Travel | 0.010" (0.25mm) | |
| Overtravel | 0.050" (1.27mm) | |
| Operating Position | 0.579" (14.7mm) | |
| Mechanical Life | 10,000,000 Cycles | |
| Electrical Life | 100,000 Cycles | |
| Operating Temperature | -40°C ~ 150°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | V7-1C13E9 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
V7-1C13E9 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of V7-1C13E9 is new and unused, you can buy V7-1C13E9 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for V7-1C13E9.
