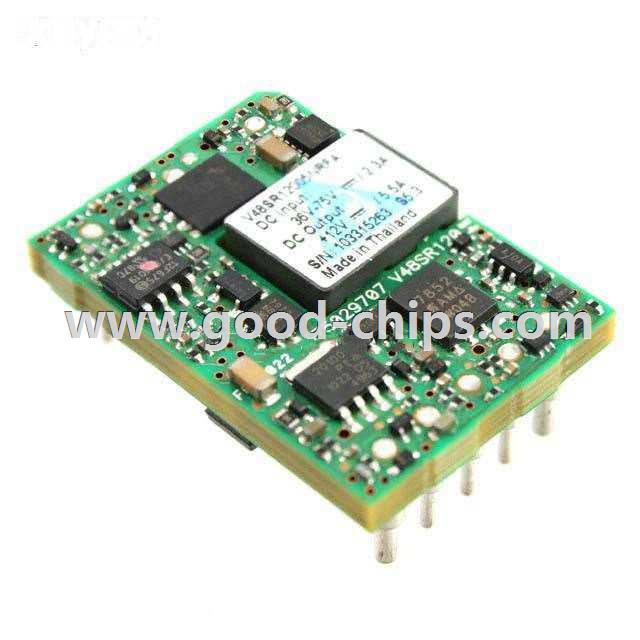

| Manufacturer Part Number: | V48SR12005NRFA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | DC DC Converters |
| Available Quantity: | 9315 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE DC/DC 1/16 BRICK 12V 5A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | V48SR12005NRFA Datasheet |
| Internal Part Number | 898-V48SR12005NRFA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | V48SR Series Evaluation Procedure | |
| Product Training Modules | High Efficiency Isolated DC/DC Converters Isolated DC/DC Converter Design Considerations | |
| Featured Product | DC/DC Converters – Delta Product Groups | |
| Online Catalog | Delphi V48SR Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | Delphi V48SR | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 5.5A | |
| Power (Watts) - Manufacture Series | 66W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP Module, 1/16 Brick | |
| Size / Dimension | 1.30" L x 0.90" W x 0.36" H (33.0mm x 22.9mm x 9.2mm) | |
| Operating Temperature | -40°C ~ 120°C | |
| Efficiency | 91% | |
| Power (Watts) - Max | 66W | |
| Standard Package | 35 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | V48SR12005NRFA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
V48SR12005NRFA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of V48SR12005NRFA is new and unused, you can buy V48SR12005NRFA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for V48SR12005NRFA.
