| Manufacturer Part Number: | V30DL45BP-M3/I |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |

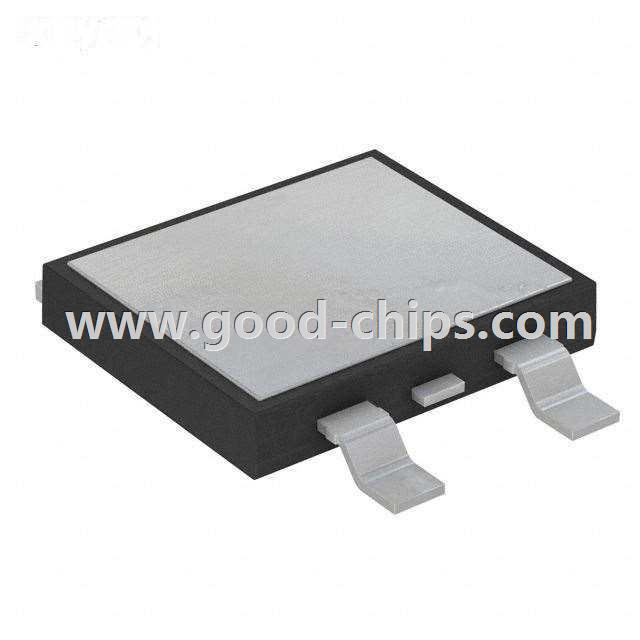

| Description: | DIODE SCHOTTKY 45V 30A SMPD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | V30DL45BP-M3/I Datasheet |
| Internal Part Number | 898-V30DL45BP-M3/I | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Wafer Material Update 30/Jun/2015 | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Vishay Semiconductor Diodes Division | |
| Series | eSMP®, TMBS® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 45V | |
| Current - Average Rectified (Io) | 30A (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 650mV @ 30A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 3mA @ 45V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab) Variant | |
| Supplier Device Package | SMPD | |
| Operating Temperature - Junction | -40°C ~ 150°C | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | V30DL45BP-M3/I | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
V30DL45BP-M3/I is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of V30DL45BP-M3/I is new and unused, you can buy V30DL45BP-M3/I Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for V30DL45BP-M3/I.
