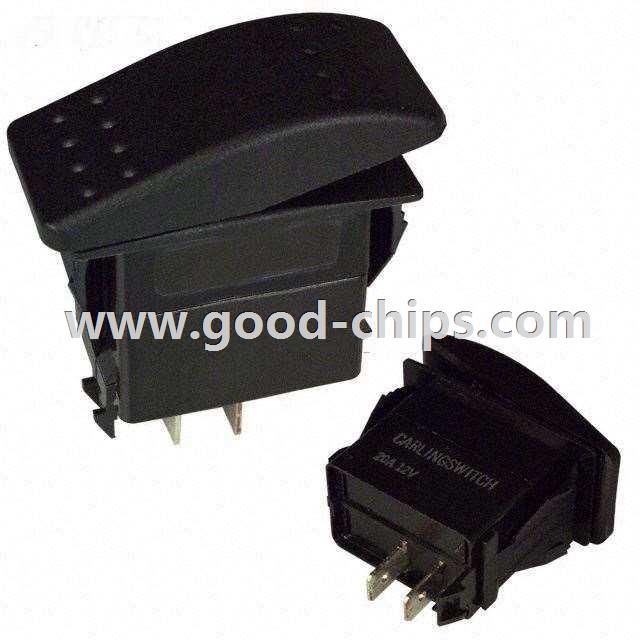

| Manufacturer Part Number: | V2D2S00B-AZC00-000 |
|---|---|
| Manufacturer: | Carling Technologies |
| Product Category: | Rocker Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rocker Switch SPST-NO 20A (DC) Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | V2D2S00B-AZC00-000 Datasheet |
| Internal Part Number | 898-V2D2S00B-AZC00-000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | V-Series Circuit Diagrams | |
| Category | Switches | |
| Family | Rocker Switches | |
| Manufacturer | Carling Technologies | |
| Series | V | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 20A (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 12V | |
| Actuator Type | Convex (Reverse V) | |
| Color - Actuator/Cap | Black | |
| Actuator Marking | No Marking | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | |
| Features | - | |
| Panel Cutout Dimensions | Rectangular - 36.83mm x 21.08mm | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 150,000 Cycles | |
| Electrical Life | 50,000 Cycles | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | V2D2S00B-AZC00-000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
V2D2S00B-AZC00-000 is in stock for immediate shipping now. We are the distributor of Carling Technologies all series components. The condition of V2D2S00B-AZC00-000 is new and unused, you can buy V2D2S00B-AZC00-000 Carling Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for V2D2S00B-AZC00-000.
