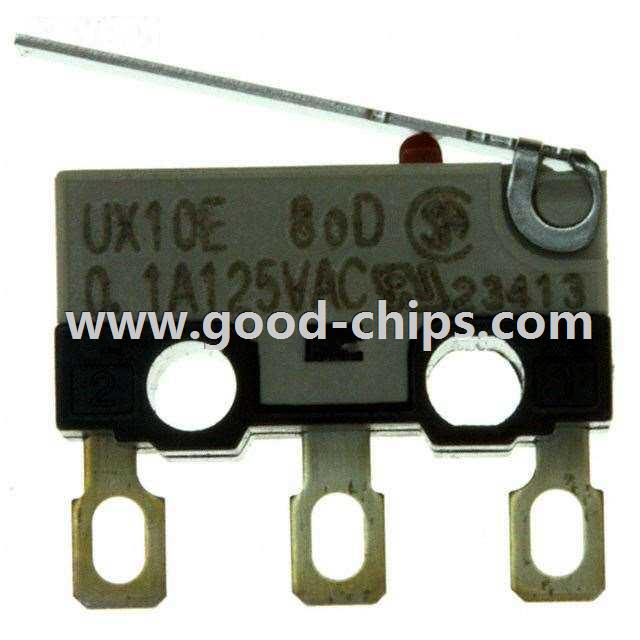

Manufacturer Part Number: | UX10E10C01 |
---|---|
Manufacturer: | Honeywell Sensing and Productivity Solutions |
Product Category: | Snap Action, Limit Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | SWITCH SNAP ACT SPDT 100MA 125V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | UX10E10C01 Datasheet |
Internal Part Number | 898-UX10E10C01 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | U Series 01/Jan/2011 | |
Category | Switches | |
Family | Snap Action, Limit Switches | |
Manufacturer | Honeywell Sensing and Productivity Solutions | |
Series | UX | |
Packaging | Bulk | |
Part Status | Obsolete | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Current Rating | 100mA (AC/DC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | 30V | |
Actuator Type | Lever, Straight | |
Mounting Type | Chassis Mount | |
Termination Style | Solder Lug | |
Ingress Protection | - | |
Features | - | |
Operating Force, Torque | 50gf | |
Release Force | 5gf | |
Pretravel | 0.083" (2.1mm) | |
Differential Travel | 0.020" (0.5mm) | |
Overtravel | 0.022" (0.55mm) | |
Operating Position | 0.268" (6.8mm) | |
Mechanical Life | - | |
Electrical Life | - | |
Operating Temperature | -25°C ~ 85°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | UX10E10C01 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
UX10E10C01 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of UX10E10C01 is new and unused, you can buy UX10E10C01 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UX10E10C01.
