Manufacturer Part Number: | USBP01-5M8 |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 3VWM QFN8L |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | USBP01-5M8 Datasheet |
Internal Part Number | 898-USBP01-5M8 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | STMicroelectronics | |
Series | USB | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | Steering (Rail to Rail) | |
Unidirectional Channels | - | |
Bidirectional Channels | 5 | |
Voltage - Reverse Standoff (Typ) | 3V | |
Voltage - Breakdown (Min) | - | |
Voltage - Clamping (Max) @ Ipp | - | |
Current - Peak Pulse (10/1000µs) | - | |
Power - Peak Pulse | 200W | |
Power Line Protection | Yes | |
Applications | General Purpose | |
Capacitance @ Frequency | 0.2pF @ 200MHz ~ 3GHz | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

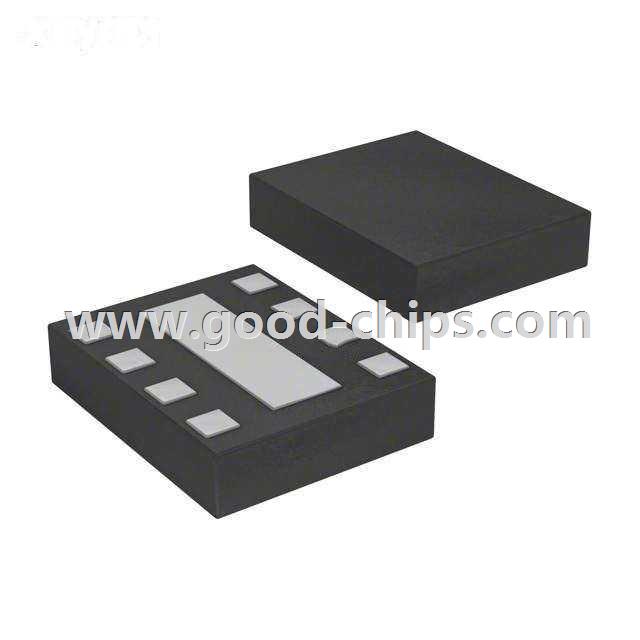

Package / Case | 8-XFDFN Exposed Pad | |
Supplier Device Package | 8-µQFN (1.7x1.35) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | USBP01-5M8 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
USBP01-5M8 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of USBP01-5M8 is new and unused, you can buy USBP01-5M8 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for USBP01-5M8.
